HKD WI07C WIFI MODULE -LOW COST

Name: HKD WI07C WIFI MODULE -LOW COST - Communica [Part No: HKD WI07C WIFI MODULE -LOW COST]
Brand: Communica
SKU: HKD WI07C WIFI MODULE -LOW COST
Price: 36.52 ZAR
Availability: OutOfStock

SKU: HKD WI07C WIFI MODULE -LOW COST

BRAND: Communica

Sold Out
R 42.00_{(inc VAT)}
R 36.52_{(ex VAT)}

Collections: IoT, Internet of things

Type: Communications

Category: HKD ESP-01/01S BREAKOUT BOARD, Iot, Wifi Module

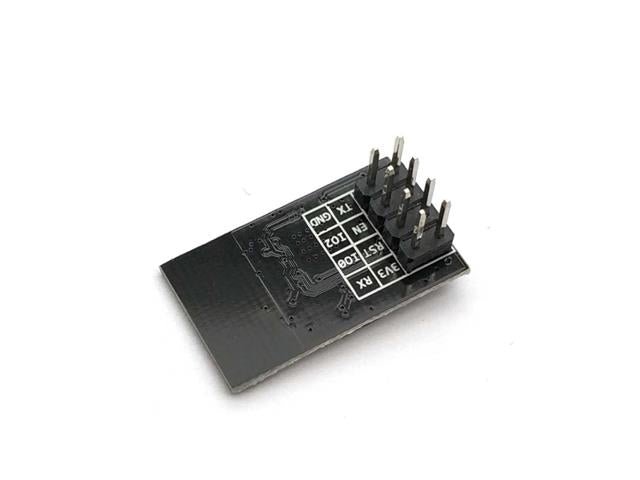

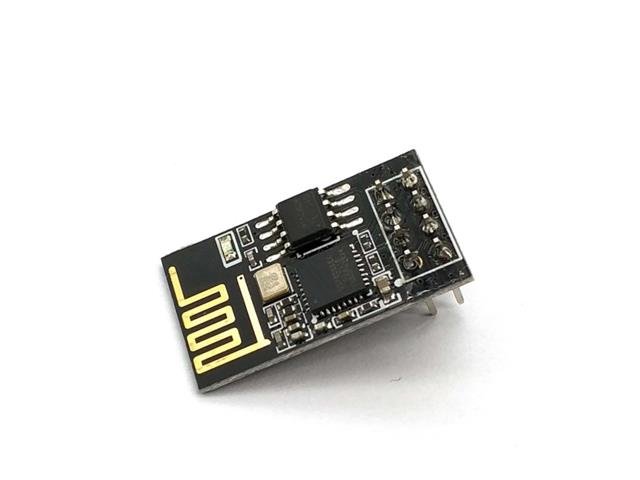

Low Cost WI07C WiFi Module Based on ESPRESSIF ESP8266EX. ESP-01S, Four Pin Interface, VCC-3V3, GND, TXD and RXD. Two Extra Gpios Can Be Used. HKD ESP/01. Breakout Board Sold Separately

Low Cost WI07C WiFi Module

Features

8 Pin Connector
15mm x 25mm Black PCB
Bult in PCB Antenna
Simple AT Commands via two serial pins
3.3V Operation (Above 3.3V Will cause damage)
Suports various modes (AP, STA, AP+STA)
802.11 b/g/n
WiFi Direct (P2P)
Integrated TCP/IP Stack
Integrated WEP, TKIP, AES and WAPI
Inegrated MAC Processors
Built in TR switch, balun, LNA & power managnent
<10uA in power down mode
Integrated 32 bit RISC Processor, available to user
Onboard UART for AT Commands Comms
Supplied sealed in Anti-Static bag

Additional Information

Device	WiFi Module
Type	Low Cost \| WI07C
