HKD WS2812 NEOPIXEL RING-9 LED

Name: HKD WS2812 NEOPIXEL RING-9 LED - Communica [Part No: HKD WS2812 NEOPIXEL RING-9 LED]
Brand: Communica
SKU: HKD WS2812 NEOPIXEL RING-9 LED
Price: 28.70 ZAR
Availability: OutOfStock

SKU: HKD WS2812 NEOPIXEL RING-9 LED

BRAND: Communica

Sold Out
R 33.01_{(inc VAT)}
R 28.70_{(ex VAT)}

Collections: Opto-electronics

Type: LED Displays

Category: Neopixel Ring

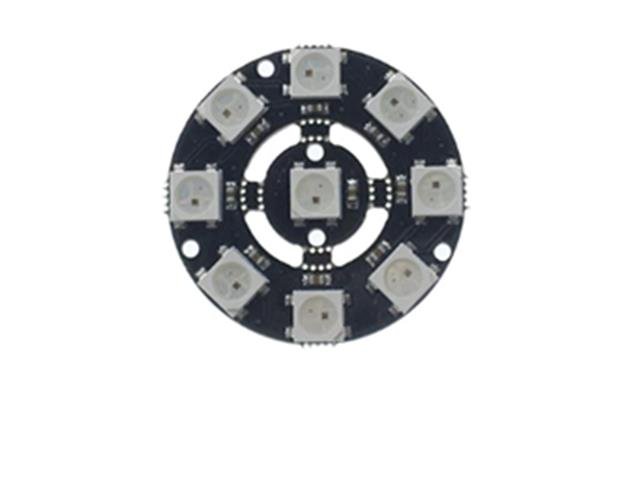

WS2812 Neopixel Ring with 9 RGB LEDS. Rings can be cascaded as as only 1 MCU I/O Pin is used for control. OD 32mm 4-7V

WS2812 Neopixel Ring with 9 RGB LEDS

Features

Round and black shape, this is great for making interesting project.
9 ultra bright smart LED NeoPixels are arranged in a circle with 32mm outer diameter.
The rings are cascaded connected – connect the output pin of one to the input pin of another. Use only one MCU I/O pin to control as many as you can chain together!
Each LED is addressable as the driver chip is inside the LED. Each one has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and no external resistors are required making the design slim.
Power Supply : 4-7V DC
WS2812 use a single data line DO communication protocol, but a very timing-specified.
This ring board can be driven by AVR 8mhz MCU, such like AVR, PIC, Arduino, etc.
WS2812 required a capacitor, but it is already designed on the board.

Additional Information

Device	Neopixel Ring
Type	WS2812 \| 9 RGB \| LEDS
References	"NEOPIXELS, HOW DO THEY WORK"?
