HKD ZMPT101B AC VOLTAGE SENSOR

Name: HKD ZMPT101B AC VOLTAGE SENSOR - Communica [Part No: HKD ZMPT101B AC VOLTAGE SENSOR]
Brand: Communica
SKU: HKD ZMPT101B AC VOLTAGE SENSOR
Price: 49.57 ZAR
Availability: OutOfStock

SKU: HKD ZMPT101B AC VOLTAGE SENSOR

BRAND: Communica

Sold Out
R 57.01_{(inc VAT)}
R 49.57_{(ex VAT)}

Collections: IoT, Internet of things

Type: Power, Battery & Solar

Category: Iot, Voltage Transformer Module

This Single Phase AC Voltage Transformer Module can measure AC Voltages up to ±250V (50HZ/60HZ) and Outputs a Scaled Down AC Voltage between 0V and VCC (5V - 30V) with a DC Offset of VCC/2.

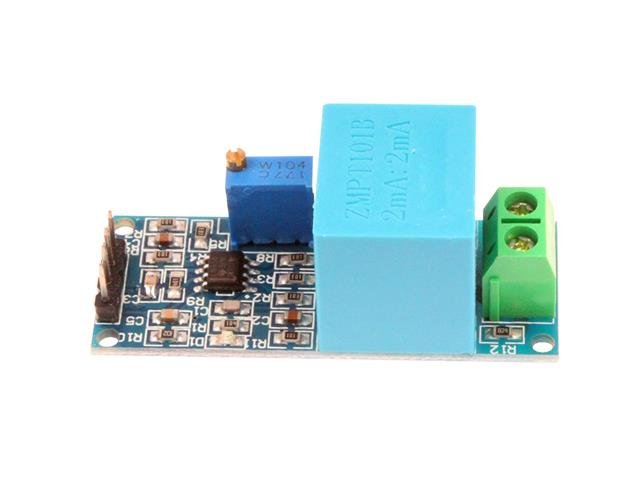

AC Voltage Transformer Sensor Module

Overview

The ZMPT101B Single Phase AC Voltage Transformer Module can measure AC voltages up to ±250V (50Hz/60Hz) and outputs a scaled down AC voltage between 0V and VCC (5V - 30V) with a DC offset of VCC/2.

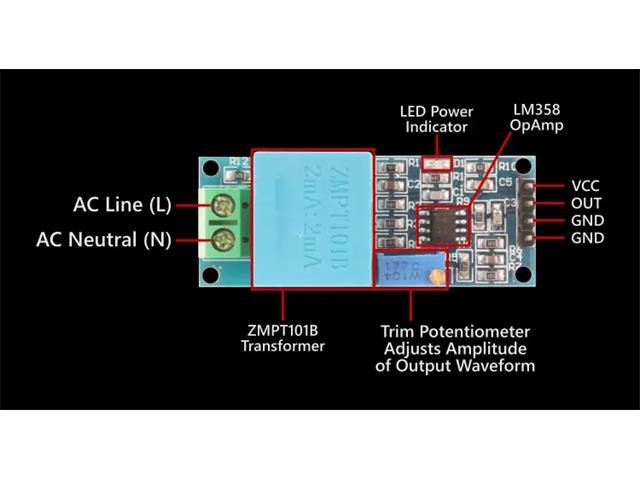

The ZMPT101B module comes with a multi turn trim potentiometer for adjusting the amplitude of the output waveform around the DC offset to make the output range suitable for an external ADC.

Specifications

Module Specs
Parameter	Description
Model	ZMPT101B Single Phase AC Voltage Transformer Module
Input	The module can measure AC voltage within ±250V RMS. The min and max peak voltage for a sine wave is Vpeak = 2·Vrms ≈ ±353V
Output	AC wave where the middle value (DC component) of the waveform is VCC/2 and the variation range of the waveform is between 0V and VCC Adjusting the potentiometer changes the amplitude of the output waveform, but not the DC offset
Operating Voltage (VCC)	+5V to +30V DC
Board Size	49.5mm x 19.4mm (1.95in x 0.76in)

ZMPT101B Transformer Specs
Parameter	Description
Rated Input Current	2mA
Rated Output Current	2mA
Linear Range	0 to 1000V 0 to 10mA
Isolation Withstand Voltage	4000V
Turns Ratio	1000:1000
Phase Angle Error	≤ 20' (50Ω)
Measurement Accuracy Class	0.2
Linearity	0.1%
Rated Burden	≤ 200Ω
Dielectric Level	3000VAC/min
Frequency Range	50Hz to 60Hz
DC coil Resistance	110Ω at 20°C
Operating Temperature	+40°C to +70°C
Size (LxWxH)	19.5mm x 17.0mm x 19.0mm 0.77in x 0.69in x 0.75in

Additional Information

Device	Sensor Module
Type	AC \| Voltage \| Transformer
