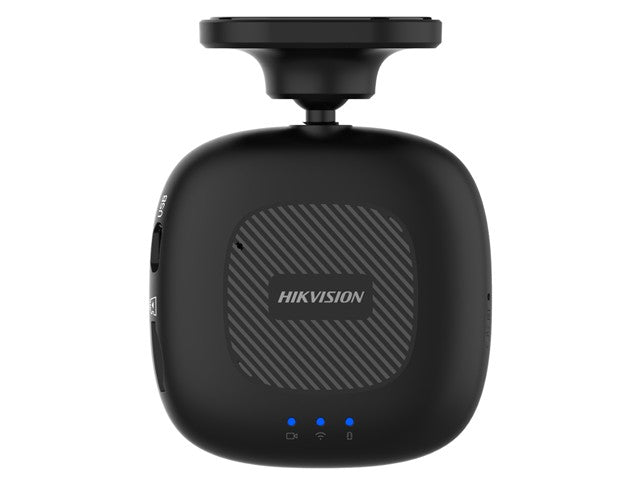

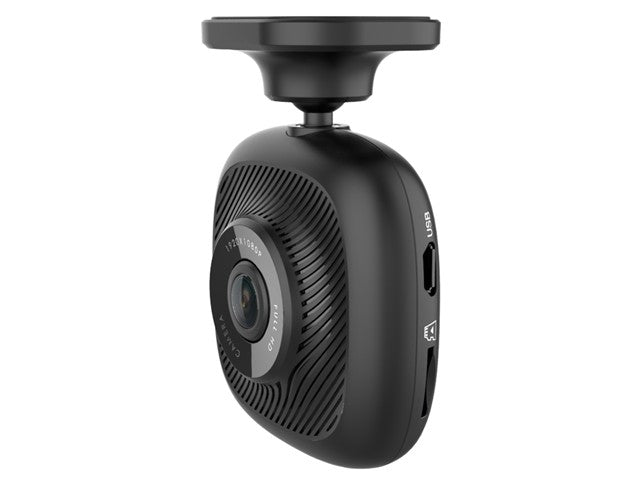

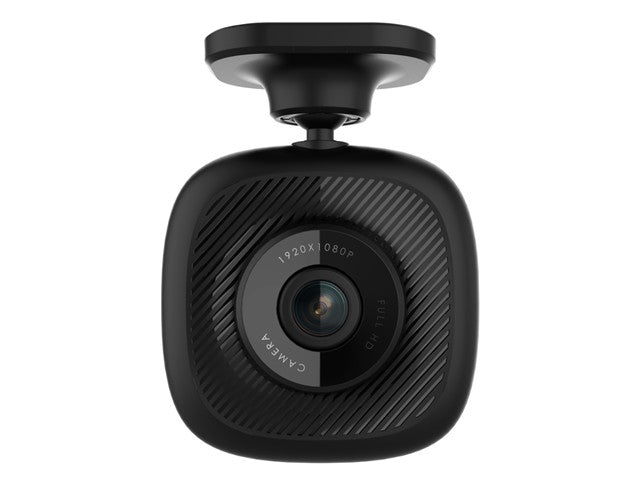

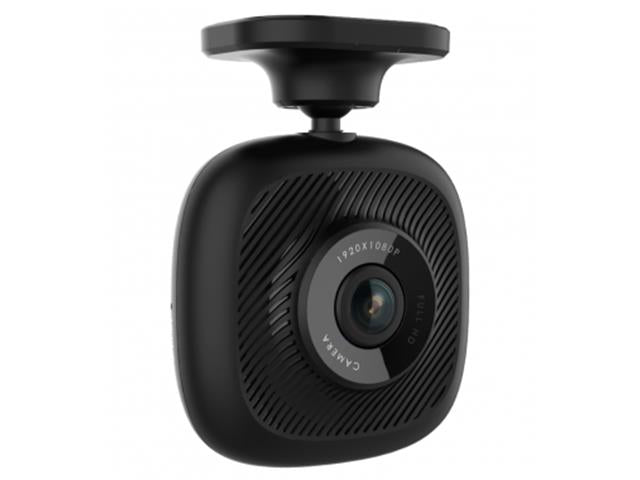

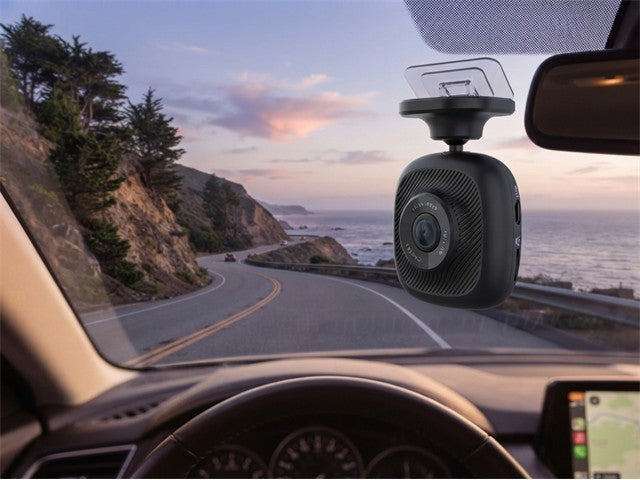

HKV AE-DC2015-B1

• Video: up to 1080p resolution, with 130°FOV
• Supports the access of one external 1080p camera
• Storage: supports TF card storage (Max.128GB) and recording overwrite
• G-sensor: adopts built-in G-sensor, supports lock and backup the recordings when collision occurs, supports event detection
• Communication: built-in Wi-Fi module
• APP: supports preview, playback and editing parameters via APP
• Easy installation and operation
• Auto recording once the device is powered on
• Low power consumption and high performance

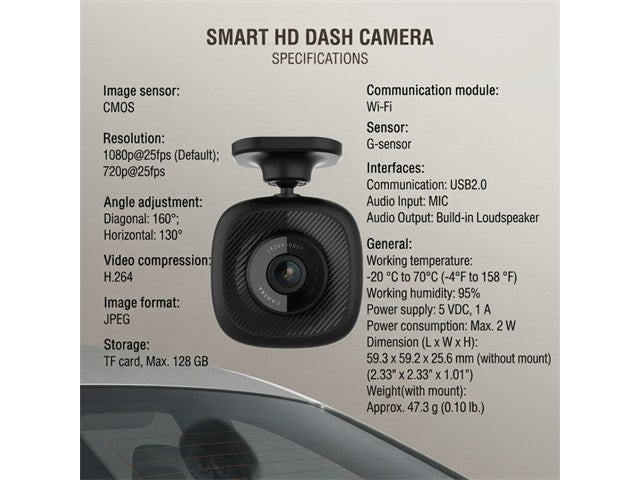

Camera

• Image sensor : CMOS
• Resolution : 1080p@25fps (Default); 720p@25fps
• Angle adjustment : Diagonal: 160°; Horizontal: 130°
• Video compression : H.264
• Image format : JPEG
• Storage : TF card, Max. 128 GB
• Communication module : Wi-Fi
• Sensor : G-sensor

Interfaces

• Communication : USB2.0
• Audio Input : MIC
• Audio Output : Build-in Loudspeaker

General

• Working temperature : -20 °C to 70°C (-4°F to 158 °F)
• Working humidity : 95%
• Power supply : 5 VDC, 1 A
• Power consumption : Max. 2 W
• Dimension (L x W x H) : 59.3 x 59.2 x 25.6 mm (without mount) (2.33" x 2.33" x1.01")
• Weight(with mount) : Approx. 47.3 g (0.10 lb.)
