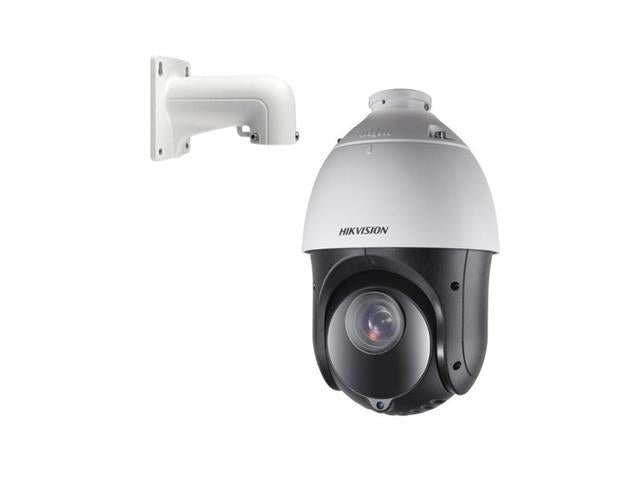

HKV DS-2AE4225TI-D
SKU: HKV DS-2AE4225TI-D
BRAND: Hikvision
R 5,169.25 (inc VAT) R 4,495.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
Hikvision IR Turbo 4" Speed Dome, 2MP IR WDR, 1/2.8" CMOS, Patrol/Pattern/Park Action, 1920x1080, 4.8mm - 120 mm 25× Opt, 100m IR, True Day/Night, 3D Intelligent Positioning, IP66 Standard, TVS 4,000V Lightning/Surge/Voltage Protection

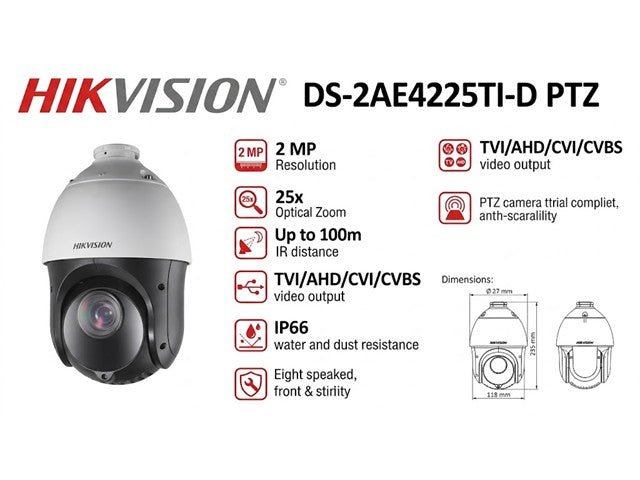

2 MP IR Turbo 4-Inch Speed Dome
Feature(s)
High quality imaging with 2 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
25 × optical zoom allows for closer viewing of subjects in expansive areas
Up to 100 m IR range ensures safety at night
Water and dust resistant (IP66)
Specifications
Camera
Image Sensor : 1/2.8" Progressive Scan CMOS
Max. Resolution : 1920 × 1080
Min. Illumination : Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
Day & Night : IR cut filter
Zoom : 25× optical, 16 × digital
Lens
Focal Length : 4.8 mm to 120 mm, 25 × optical
FOV : Horizontal FOV: 57.6° to 2.5° (wide to tele)
Focus : Auto, semi-auto, manual
Aperture : F1.6 to F3.5
Zoom Speed : Approx. 3.2 s (optical, wide to tele)
Illuminator
Supplement Light Type : IR
Supplement Light Range : Up to 100 m
PTZ
Movement Range (Pan) : 360° endless
Movement Range (Tilt) : -15° to 90° (auto flip)
Pan Speed
Pan manual speed: 0.1° to 80°/s
Pan preset speed: 80°/s
Tilt Speed
Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
Proportional Pan : Rotation speed can be adjusted automatically according to zoom multiples
Presets : 256
Patrol Scan : 10 patrols, up to 32 presets for each patrol
Pattern Scan : 5 patterns, record time over 10 minutes for each scan
Park Action : Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Status Display : Yes
Scheduled Task : Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-off Memory : Yes
Video
Frame Rate
50 Hz: 25 fps @(1920 × 1080)
60 Hz: 30 fps @(1920 × 1080)
Network
Protocols : UTC protocol (or HIKVISION-C protocol in previous DVR)
Image Settings : AGC, white balance
Wide Dynamic Range (WDR) : ≥ 120 dB
Image Stabilization : EIS
Image Enhancement : BLC, HLC, 3D DNR
Privacy Mask : 8 programmable privacy masks
Regional Focus : Yes
Interface
Video Output : Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
RS-485
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
General
Power : 12 VDC, max. 20 W (IR: 7 W)
Dimension : Ø 164.5 × 295 mm (Ø 6.47" × 11.61")
Operating Condition : -30° C to 65° C (-22° F to 149° F). Humidity 90% or less
Language : English
Downloads
Additional Information
Device
Camera
Type
2 MP | IR | Turbo | 4-Inch | Speed | Dome
Upgrade your surveillance with the HKV DS-2AE4225TI-D 2MP IR Turbo Speed Dome camera. Featuring 25× optical zoom, 100m IR capability, and true WDR, it ensures crystal-clear images in any lighting. With robust IP66 protection and advanced 3D intelligent positioning, this camera delivers reliable performance for all your security needs.
