• Up to 4 megapixel 2688×1520 @ 20fps resolution
• Standard video compression with high compression ratio, ROI (region of interest) encoding
• Progressive scan CMOS, capture motion video without incised margin
• Support dual stream, and the sub-stream for mobile surveillance
• High-performance and long service life Infrared LED, Approx. 10 to 30 meters IR range
• Two-way audio (-S)
• Audio I/O (-S)
• Support Wi-Fi (W)
• Support 120dB wide dynamic range
• IR cut filter with auto switch
• PoE (Power over Ethernet)
• Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
• Ingress Protection level: IP66
• Impact Protection: IK08
• Other functions: rotate mode, alarm, mirror, reset button, etc
• 3-axis adjustment
• Support VCA, which is compatible with NVR for the second time of video searching and analysing

Camera

• Image Sensor : 1/3" Progressive Scan CMOS
• Min. Illumination : 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
• Shutter time : 1/3 s to 1/10,000 s
• Lens : 2.8mm @ F2.0
• Lens Mount : M12
• Adjustment Range : Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355°
• Day& Night : IR cut filter with auto switch
• Wide Dynamic Range : 120 dB
• Digital noise reduction : 3D DNR

Compression Standard

• Video Compression : H.264/MJPEG/H.264+
• H.264 code profile : Main Profile
• Video bit rate : 32Kbps~16Mbps
• Dual Stream : Yes


• Max. Image Resolution : 2688 × 1520
• Frame Rate
• 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
• 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
• Image Settings : Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
• BLC : Yes, zone configurable
• ROI : Support

Network

• Network Storage : NAS (Support NFS,SMB/CIFS), ANR
• Alarm Trigger : Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
• Protocols : TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• Security : One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access
• System Compatibility : ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI

Interface

• Audio : 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model)
• Communication Interface : 1 RJ45 10M / 100M Ethernet interface
• Alarm : 1x alarm I/O only for –S models
• On-board storage : Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Reset Button : Yes

Wi-Fi Specification (-W)

• Wireless Standards : IEEE802.11b, 802.11g, 802.11n
• Frequency Range : 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth : 20/40MHz Support
• Modulation Mode
• 802.11b: CCK, QPSK, BPSK
• 802.11g/n: OFDM
• Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
• Transmit Power
• 11b: 17±1.5dBm @ 11Mbps
• 11g: 14±1.5dBm @ 54Mbps
• 11n: 12.5±1.5dBm
• Receive Sensitivity :
• 11b: -90dBm @ 11Mbps (Typical)
• 11g: -75dBm @ 54Mpbs (Typical)
• 11n: -74dBm (Typical)
• Transmission Rate
• 11b: 11Mbps
• 11g: 54Mbps
• 11n: up to 150Mbps
• Wireless Range : 50m(depend on environment)

General

• Operating Conditions : -30 °C ~ 60 °C (-22 °F ~ 140 °F)
• Humidity : 95% or less (non-condensing)
• Power Supply : 12 VDC ± 10%, PoE (802.3af)
• Power Consumption : Max. 5W
• Impact Protection : IK08(-W model)/IK10(non -W model)
• Weather Proof : IP66
• IR Range : Up to 30m

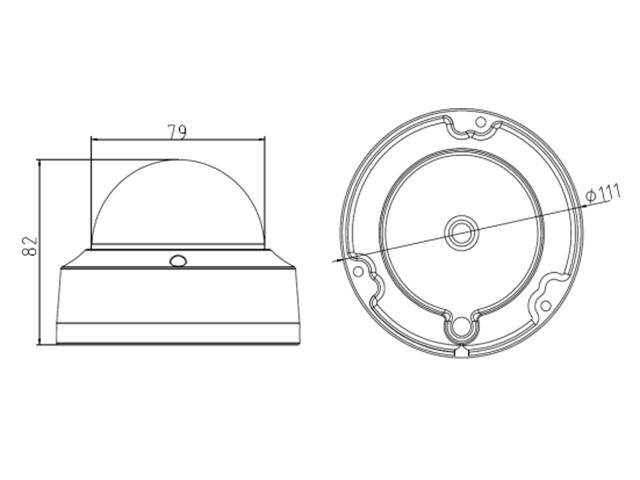

• Dimensions : Φ111 × 82 (4.4” × 3.2”)
• Weight : 500g (1.1lbs)

1. Datasheet - HKV DS-2CD2142FWD-I
