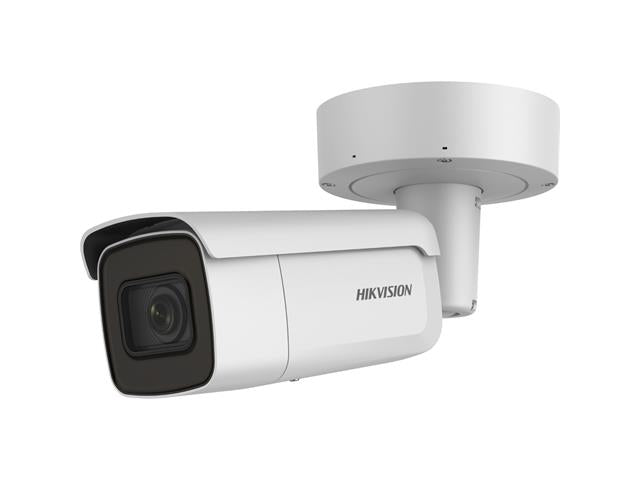

HKV DS-2CD2626G2-IZS

SKU: HKV DS-2CD2626G2-IZS

BRAND: Hikvision


Hikvision AcuSense VF Bullet Network Camera, 2MP, H.265/H.265+/H.264+/H.264, 25fps (1920 × 1080, 1280 × 720), 2.8-12mm Lens, 60m IR, Audio and alarm interface, 120dB WDR, Powered by Darkfighter, Built-in Micro SD/SDHC/SDXC slot, up to 256 GB, IP66

AcuSense VF Bullet Network Camera

Feature(s)

  • High quality imaging with 2 MP resolution
  • Motorized Varifocal lens for easy installation and monitoring
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Focus on human and vehicle classification based on deep learning
  • Audio and alarm interface available
  • Water and dust resistant (IP66) and vandal-resistant (IK10)

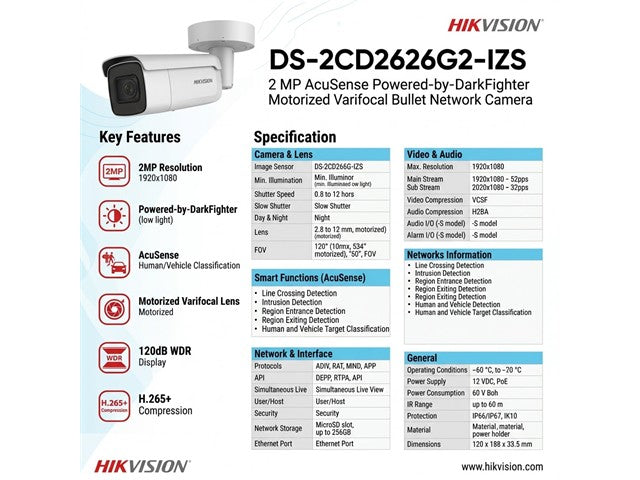

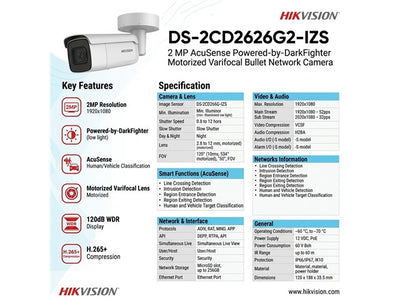

Specifications

Camera

  • Image Sensor : 1/2.8" Progressive Scan CMOS
  • Min. Illumination : Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
  • Wide Dynamic Range : 120 dB
  • Day & Night : IR cut filter
  • Shutter Speed : 1/3 s to 1/100,000 s
  • Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
  • Slow Shutter : Yes
  • P/N : P/N
  • Power-off Memory : Yes

Lens

  • Focal Length & FOV : 2.8 to 12 mm, horizontal FOV 113° to 31°, vertical FOV 58° to 18°,diagonal FOV 138° to 36°
  • Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
  • Aperture : F1.4
  • Lens  Mount : Ø 14
  • Iris Type : Fixed

DORI

  • DORI
    • 2.8 to 12 mm:
    • Wide: D: 44.1 m, O: 17.5 m, R: 8.8 m, I: 4.4 m
    • Tele: D: 131.0 m, O: 52.0 m, R: 26.2 m, I: 13.1 m

Illuminator

  • IR Range : Up to 60 m
  • IR Wavelength : 850 nm
  • Smart Supplement Light : Yes
  • Supplement Light Type : IR

Video

  • Max. Resolution : 1920 × 1080
  • Main Stream
    • 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
    • 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream
    • 50 Hz: 25 fps (640 × 480, 640 × 360)
    • 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream
    • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • *Third stream is supported under certain settings.
  • Video Compression
    • Main stream: H.265/H.264/H.264+/H.265+
    • Sub-stream: H.265/H.264/MJPEG
    • Third stream: H.265/H.264
    • *Third stream is supported under certain settings.
  • Video Bit Rate : 32 Kbps to 8 Mbps
  • H.264 Type : Baseline Profile/Main Profile/High Profile
  • H.265 Type : Main Profile
  • H.264+ : Main stream supports
  • H.265+ : Main stream supports
  • Bit Rate Control : CBR/VBR
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Region of Interest (ROI) : 1 fixed region for main stream and sub-stream

Audio

  • Environment Noise Filtering : Yes
  • Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

  • Simultaneous Live View : Up to 6 channels
  • API : Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
  • Smooth Streaming : Yes
  • User/Host : Up to 32 users. 3 user levels: administrator, operator and user
  • Security : Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage : NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client : iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser
    • Plug-in required live view: IE 10+
    • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
    • Local service: Chrome 57.0+, Firefox 52.0+


  • SNR : ≥ 52 dB
  • Day/Night Switch : Day, Night, Auto, Schedule
  • Image Enhancement : BLC, HLC, 3D DNR
  • Image Parameters Switch : Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

  • Alarm : 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Audio
    • 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance:
    • 4.7 KΩ, interface type: non-equilibrium
    • 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output
    • impedance: 100 Ω, interface type: non-equilibrium
  • On-Board Storage : Built-in memory card slot, support microSD card, up to 256 GB
  • Hardware Reset : Yes
  • Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

  • Basic Event : Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event : Scene change detection

Deep Learning Function

  • Face Capture : Yes
  • Perimeter Protection
    • Line crossing detection, intrusion detection, region entrance detection, region exiting detection
    • Supports human and vehicle targets classification

General

  • Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Power Supply
    • 12 VDC ± 25%, reverse polarity protection
    • PoE: 802.3at, Class 4
  • Power Consumption and Current
    • 12 VDC, 1.08 A, max. 13 W
    • PoE (802.3at, 42.5 V to 57 V), 0.36 A to 0.27 A, max. 15 W
  • Power Interface : Two-core terminal block
  • Camera Material : Metal
  • Camera Dimension : Ø 144.1 mm × 345.7 mm (5.7" × 13.6")
  • Camera Weight : Approx. 1450 g (3.2 lb.)
  • Linkage Method : Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, trigger alarm output, audible warning, send email

Web Client Language:

  • 33 languages : English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function : Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
  • Software Reset : V5.5.113

Downloads

Additional Information

Device Camera
Type AcuSense | Bullet | Network
