Vision Bullet Network Camera, 4MP IR, H.265/H.265+/H.264+/H.264, 1/2.5”CMOS, 4 Behavior analyses, 2688×1520@30fps, 6mm Lens, 80m IR optional, 120dB WDR, Powered by Darkfighter, DNR/ROI/HLC, Built-in Micro SD/SDHC/SDXC slot, up to 128GB, IP67 (Acusense)

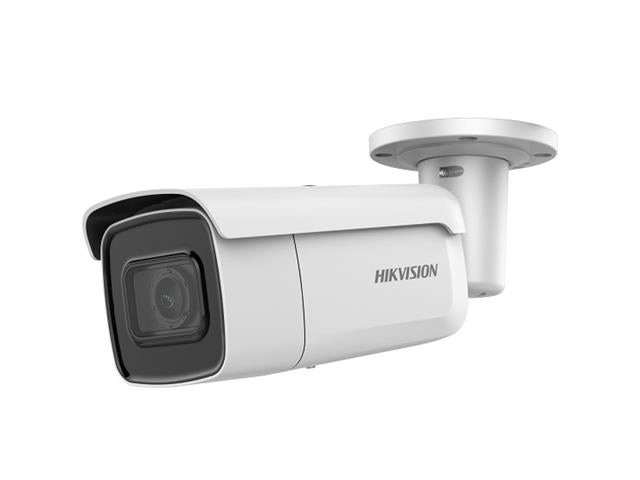

AcuSense 4 MP IR Fixed Bullet Network Camera
Overview
AcuSense
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms
to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or
vehicles, vastly improving alarm efficiency and effectiveness.
Feature(s)
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- False alarm reduction through human and vehicle target classification based on deep learning
- Water and dust resistant (IP67)
- 3D DNR technology delivers clean and sharp images
Specifications
Camera
- Image Sensor : 1/2.7" Progressive Scan CMOS
- Min. Illumination Color : 0.003 Lux @ (F1.4, AGC ON)
- Day & Night : ICR Cut
- Shutter Speed : 1/3 s to 1/100,000 s
- Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Slow Shutter : Yes
- P/N : P/N
- Wide Dynamic Range : 120 dB
Lens
- Lens Type & FOV
- 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°
- 4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°
- 6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°
- Aperture F1.4
- Lens Mount M12
- Aperture Type Fixed
Illuminator
- IR Range
- 2I: Up to 60 m
- 4I: Up to 80 m
- Wavelength 850 nm
- Smart Supplement Light : Yes
- Supplement Light : IR
Video
- Max. Resolution : 2592 × 1944
- Main Stream
- 50Hz: 20fps (2592 × 1944)
- 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
- 60Hz: 20fps (2592 × 1944)
- 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub Stream
- 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
- 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream
- 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
- 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
- Video Compression
- Main stream : H.265/H.264
- Sub-stream : H.265/H.264/MJPEG
- Third stream : H.265/H.264
- Video Bit Rate : 32 Kbps to 8 Mbps
- H.264 Type : Baseline Profile/Main Profile/High Profile
- H.265 Type : Main Profile
- H.264+ Main Stream supports
- H.265+ : Main Stream supports
- Bit Rate Control : CBR/VBR
- Scalable Video Coding (SVC) : Yes
- Region of Interest (ROI) : 1 fixed region for each stream
Downloads
Additional Information
| Device |
Camera |
| Type |
AcuSense | 4 MP | IR Fixed | Bullet | Network |
