• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• Smart-Hybrid light, optimize your security with flexible lighting options
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, fixed focal lens
• Up to 40 m white light distance for bright night imaging
• Up to 40 m IR distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

Camera

• Image Sensor : 2 MP CMOS
• Max. Resolution : 1920 (H) × 1080 (V)
• Min. Illumination : 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & Night : ICR
• Angle Adjustment : Pan: 0° to 360°,Tilt: 0° to 180°,Rotate: 0° to 360°
• Signal System : PAL/NTSC

Lens

• Lens Type : 2.8 mm fixed focal lens
• Focal Length & FOV : 2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 126°
• Lens Mount : M12

Illuminator

• Supplement Light Type
  • IR,
  • White Light
• Supplement Light Range : IR: Up to 40 m,White Light: Up to 40 m
• Smart Supplement Light : Yes


• Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
• Image Settings : Brightness, Sharpness, Anti-banding, AGC
• Frame Rate
  • TVI: 1080p @25 fps/30 fps
  • CVI: 1080p @25 fps/30 fps
  • AHD: 1080p @25 fps/30 fps
  • CVBS: PAL/NTSC
• Day/Night Mode : Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR) : Digital WDR
• Noise Reduction : 3D DNR/2D DNR
• Image Enhancement
  • DWDR,
  • BLC,
  • HLC,
  • Global
• White Balance : Auto, Manual

Interface

• Video Output : Switchable TVI/AHD/CVI/CVBS
• Built-In Microphone : Yes

General

• Material : Metal
• Power : 12 VDC ± 25%, max. 4.2 W,*You are recommended to use one power adapter to supply the power for one camera.
• Dimension : 192.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93")
• Weight : Approx. 525 g (1.16 lb.)
• Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
• Communication : HIKVISION-C
• Language : English

Approval

• Protection : IP67

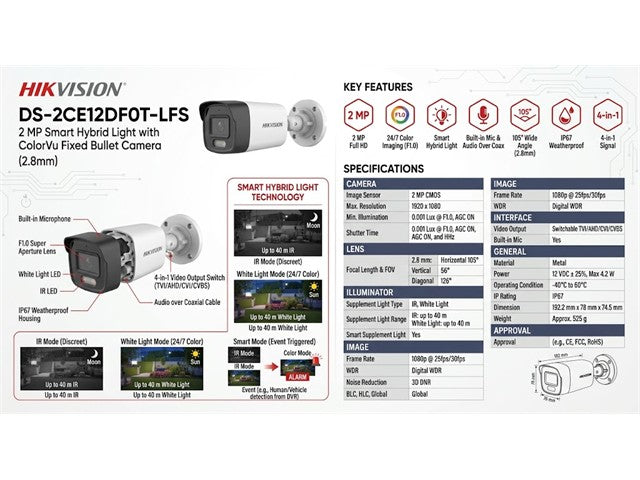

1. Datasheet - HKV DS-2CE12DF0T-LFS (2,8MM)
