• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• Smart-Hybrid light, optimize your security with flexible lighting options
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 40 m white light distance for bright night imaging
• Up to 40 m IR distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

Camera

• Image Sensor : 2 MP CMOS
• Max. Resolution : 1920 (H) × 1080 (V)
• Slow Shutter : Max. 16 times
• Min. Illumination : 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Day & Night : ICR
• Angle Adjustment : Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
• Signal System : PAL/NTSC
• Shutter Time : PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Lens

• Lens Type : 3.6 mm fixed focal lens
• Focal Length & FOV : 3.6 mm, horizontal FOV: 85°, vertical FOV: 46°, diagonal FOV: 98°
• Lens MountM12

Microphone

• Pickup Distance : In a radius of up to 5 m
• Amount : 1

Illuminator

• Supplement Light Type : Smart
• Supplement Light Range : IR: Up to 40 m, White Light: Up to 40 m


• Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
• Image Settings
• Brightness,
• Contrast,
• Sharpness,
• Anti-banding,
• AGC
• Frame Rate
  • TVI: 1080p @30 fps, 1080p @25 fps
  • AHD: 1080p @30 fps, 1080p @25 fps
  • CVI: 1080p @30 fps, 1080p @25 fps
  • CVBS: PAL/NTSC
• Day/Night Mode : Auto/Color
• Wide Dynamic Range (WDR) : ≥130 dB
• Image Enhancement
  • WDR,
  • BLC,
  • HLC,
  • Global,
  • HLS
• Privacy Mask : 4 programmable privacy masks
• Noise Reduction : 3D DNR
• White Balance
• Auto,
• Manual

Interface

• Video Output : Switchable TVI/AHD/CVI/CVBS
• Alarm : Solid Light Alarm(White Light)

Event

• Motion Detection : 4 programmable motion areas

General

• Power
  • 12 VDC ± 25%, max. 6.9 W
  • *You are recommended to use one power adapter to supply the power for one camera.
• Material : Metal
• Dimension : 194.19 mm × 78.01 mm × 74.46 mm (7.65" × 3.07" × 2.93")
• Approx. 530 g (1.17 lb.)
• Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
• Communication : HIKVISION-C
• Language : English

Approval

• Protection : IP67

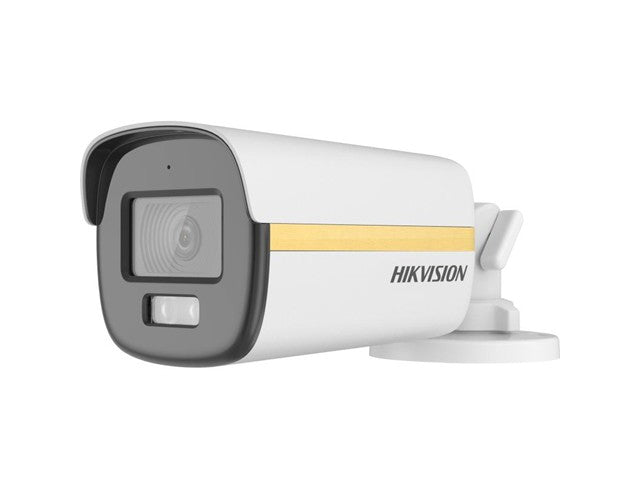

1. Datasheet - HKV DS-2CE12DF3T-LFS (3.6MM)
