HKV DS-2CE16D0T-EXIPF (2,8MM)

SKU: HKV DS-2CE16D0T-EXIPF (2,8MM)

BRAND: Hikvision

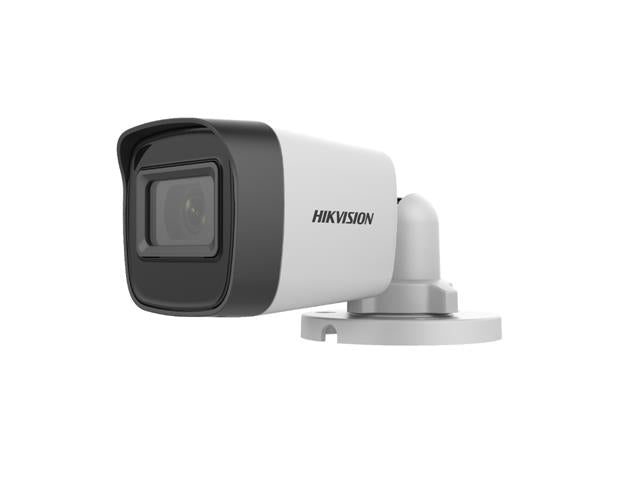

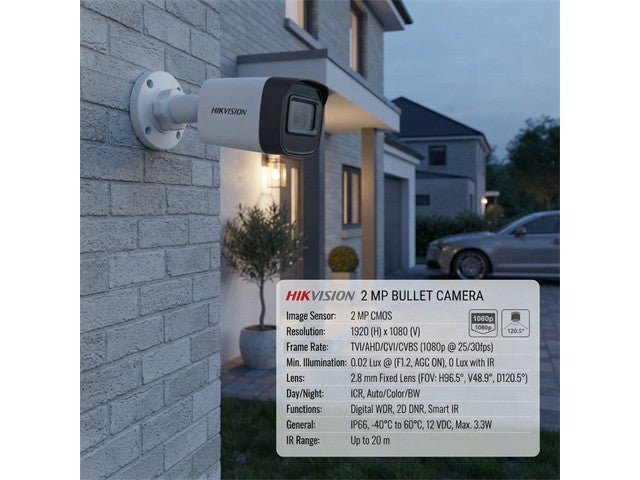

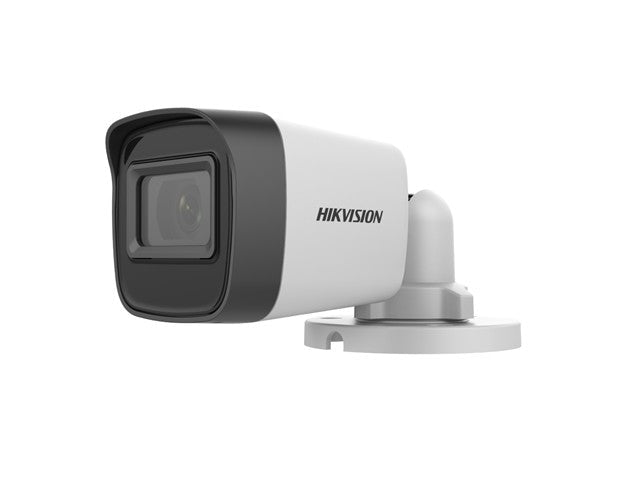

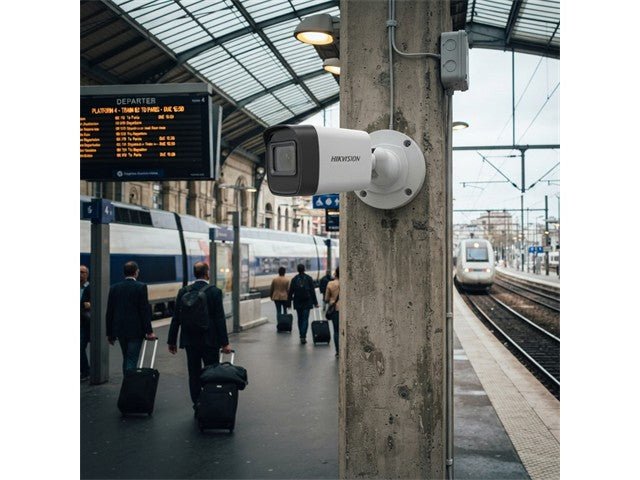

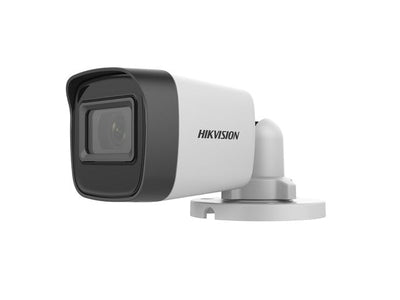

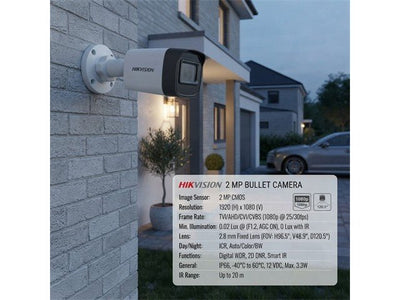

Hikvision Outdoor Mini Bullet Camera, 2MP HD1080P IR, Switchable TVI/AHD/CVI/CVBS, 1920x1080, 2.8mm Lens, 20m IR, Day-Night, IP66

2MP Outdoor EXIR Fixed Mini Bullet Camera

Feature(s)

  • High quality imaging with 2 MP, 1920 × 1080 resolution
  • 2.8 mm fixed lens
  • Up to 20 m IR distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
  • Water and dust resistant (IP66)

Specifications

Camera

  • Image Sensor : 2 MP CMOS
  • Signal System : PAL/NTSC
  • Resolution : 1920 (H) × 1080 (V)
  • Frame Rate
    • TVI: 1080p@25fps/30fps
    • AHD: 1080p@25fps/30fps
    • CVI: 1080p@25fps/30fps
    • CVBS: PAL/NTSC
  • Min. Illumination : 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
  • Lens : 2.8 mm Fixed Lens
  • Field of View : 2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°
  • Lens Mount : M12
  • Day & Night : ICR
  • WDR (Wide Dynamic Range) : Digital WDR
  • Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Menu

  • Image Mode : STD/HIGH-SAT
  • AGC : Yes
  • Day/Night : Mode Auto/Color/BW (Black and White)
  • White Balance : Auto
  • AE (Auto Exposure) Mode : DWDR, BLC, Global
  • Noise Reduction : 2D DNR
  • Language : English
  • Function : Brightness, Mirror, Smart IR, Sharpness

Interface

  • Video Output Switchable TVI/AHD/CVI/CVBS

General

  • Operating Conditions : -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
  • Power Supply : 12 VDC ± 25%
  • Consumption : Max. 3.3 W
  • Protection Level : IP66
  • Material : Plastic
  • IR Range : Up to 20 m
  • Communication : HIKVISION-C
  • Dimension : 138.8 mm × 60.9 mm × 57.9 mm (5.465" × 2.389" 2.278")
  • Weight : Approx. 145 g (0.32 lb.)

Downloads

Additional Information

Device Camera
Type 2MP | Outdoor | EXIR | Fixed | Mini | Bullet
