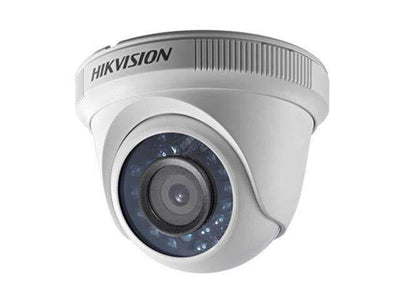

Hikvision Turret Camera, 2MP HD1080P, 2MP" CMOS, 1920x1080, Internal Synchronization, 3.6m Lens, True Day-Night, Smart IR, 20m IR, Switchable TVI/AHD/CVI/CBVS, IP66
HD1080p IR Turret Camera
Feature(s)
- 2.0 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution
- True Day/Night
- Smart IR
- Up to 20m IR distance
- IP66 weatherproof
- Switchable TVI/AHD/CVI/CVBS
Specifications
Camera
- Image Sensor : 2MP CMOS image sensor
- Signal System : PAL/NTSC
- Frame Rate PAL : 1080p@25fps, NTSC: 1080p@30fps
- Resolution : 1920 (H) ×1080 (V)
- Min. illumination : 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time : 1/25 (1/30) s to 1/50,000 s
- Lens : 3.6 mm, 2.8 mm, 6 mm fixed lens
- Horizontal Field of View : 103°(2.8 mm), 82.2°(3.6 mm), 54°(6 mm)
- Lens Mount : M12
- Day & Night : IR cut filter
- Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Synchronization : Internal synchronization
Menu
- AGC : Low/middle/high
- Day/Night Mode : Smart/color/BW(Black and White)
- Backlight Compensation : Yes
- DWDR : Yes
- Language : English, Chinese
- Functions : Brightness, Sharpness, DNR, Mirror
Interface
- Video Output : 1 HD analog output
- Switch Button : TVI/AHD/CVI/CVBS
General
- Operating Conditions : -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
- Power Supply : 12 VDC ±15%
- Power Consumption : Max. 4 W
- Ingress Protection : IP66
- Material : Enclosure: Plastic, Main Body Metal
- IR Range : Up to 20 m
- Dimension : Φ 89.9 mm × 70.1 mm (3.54" × 2.76")
- Weight : Approx. 280 g (0.62 lb.)
Downloads
Additional Information
| Device |
Camera |
| Type |
HD1080p | IR | Turret |
