• High quality imaging with 2 MP, 1920 × 1080 resolution
• 2.7 mm to 13.5 mm varifocal lens
• Up to 40 m IR distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

Camera

• Image Sensor : 2 MP CMOS
• Signal System : PAL/NTSC
• Resolution : 1920 (H) × 1080 (V)
• Frame Rate
  • TVI: 1920 × 1080 @ 30 fps, 1080P @ 25 fps
  • AHD: 1920 × 1080 @ 30 fps, 1080P @ 25 fps
  • CVI: 1920 × 1080 @ 30 fps, 1080P @ 25 fps
  • CVBS: PAL/NTSC
• Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Lens : 2.7 mm to 13.5 mm varifocal lens
• Field of View : Horizontal FOV: 100° to 30°, vertical FOV: 52° to 17°, diagonal FOV: 116° to 34.5°
• Lens Mount : Ø 14
• Day & Night : Color & ICR
• WDR (Wide Dynamic Range) : Digital WDR
• Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°


• Day/Night Mode : Auto/Color/BW (Black and White)
• Image Mode : STD/HIGH-SAT
• AGC : Yes
• White Balance : Auto/Manual
• AE (Auto Exposure) Mode : DWDR, BLC, HLC, Global
• Noise Reduction : 2D DNR
• Language : English
• Function : Brightness, Contrast, Mirror, Smart IR, Sharpness, Saturation

Interface

• Video Output Switchable TVI/AHD/CVI/CVBS

General

• IR Range Up to 40 m
• Operating Conditions -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Power Supply 12 VDC ± 15%
• Consumption Max. 5 W
• Protection Level IP67
• Material Front cover: Metal, Main body: Plastic
• Communication HIKVISION-C
• Dimension 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10.04")
• Weight Approx. 682 g (1.50 lb.)

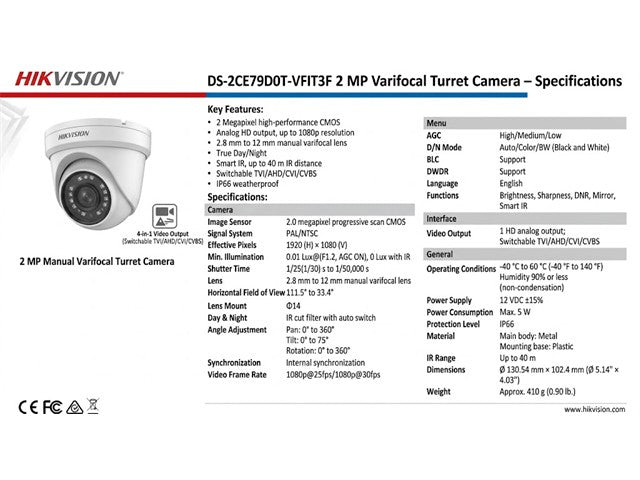

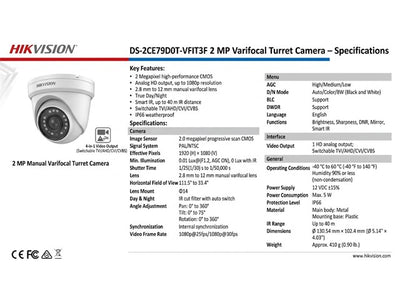

1. Datasheet - HKV DS-2CE79D0T-VFIT3F
