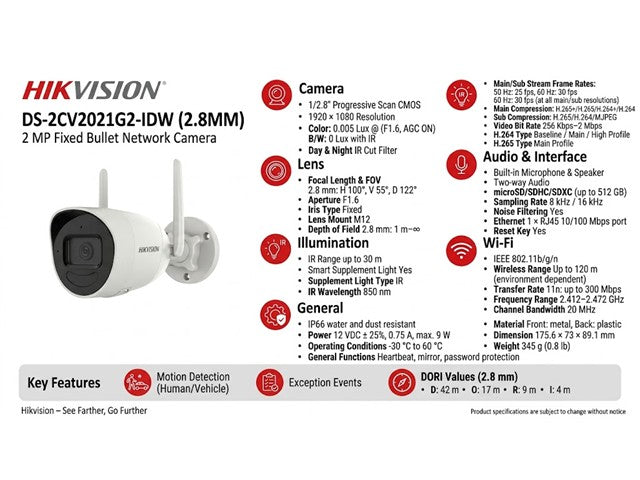

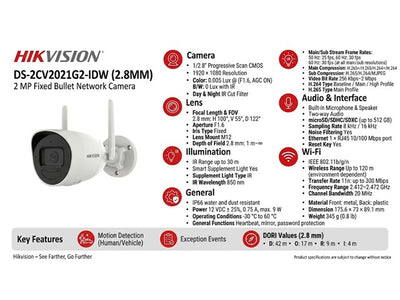

| Camera |
|
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time |
1/25 s to 1/10000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° |
| Lens |
|
| Lens Type |
Fixed focal lens, 2.8 mm |
| Focal Length & FOV |
2.8 mm: H 100°, V 55°, D 122° |
| Aperture |
F1.6 |
| Iris Type |
Fixed |
| Lens Mount |
M12 |
| Depth of Field |
2.8 mm: 1 m–∞ |
| DORI |
|
| 2.8 mm |
D: 42 m, O: 17 m, R: 9 m, I: 4 m |
| 4 mm |
D: 52 m, O: 21 m, R: 11 m, I: 5 m |
| Illuminator |
|
| Supplement Light Type |
IR |
| IR Wavelength |
850 nm |
| Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| Video |
|
| Main Stream |
50 Hz: 25 fps (1920×1080, 1280×720)
60 Hz: 30 fps (1920×1080, 1280×720) |
| Sub-Stream |
50 Hz: 25 fps (768×432, 512×288)
60 Hz: 30 fps (768×432, 512×288) |
| Compression |
Main: H.265+/H.265/H.264+/H.264
Sub: H.265/H.264/MJPEG |
| Bit Rate |
256 Kbps–2 Mbps |
| H.264 Type |
Baseline / Main / High Profile |
| H.265 Type |
Main Profile |
| Audio |
|
| Compression |
G.711, G.722.1, G.726, PCM, AAC-LC |
| Bit Rate |
G.711: 64 Kbps
G.722.1: 16 Kbps
G.726: 16 Kbps
MP2L2: 32–160 Kbps
AAC-LC: 16–64 Kbps |
| Sampling Rate |
8 kHz / 16 kHz |
| Noise Filtering |
Yes |
| Network |
|
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, Bonjour |
| Live View |
Up to 4 channels |
| API |
N/A |
| User/Host |
1 user (administrator) |
| Client |
Hik-Connect, iVMS-4200 |
| Web Browser |
N/A |
| Wi-Fi |
|
| Transfer Rate |
11n: up to 300 Mbps |
| Protocol |
802.11n: OFDM
802.11b: DSSS
802.11g: OFDM |
| Frequency Range |
2.412 – 2.472 GHz |
| Channel Bandwidth |
20 MHz |
| Modulation |
802.11n: BPSK/QPSK/16QAM/64QAM
802.11b: DBPSK/DQPSK/CCK
802.11g: BPSK/QPSK/16QAM/64QAM |
| Wireless Range |
Up to 120 m (environment dependent) |
| Antenna |
2 antennas |
| Image |
|
| Settings |
Auto |
| Day/Night Switch |
Auto / Schedule / Day / Night |
| WDR |
80 dB |
| Enhancement |
BLC, 3D DNR |
| Interface |
|
| Microphone |
Built-in |
| Speaker |
Built-in |
| Storage |
microSD/microSDHC/microSDXC (up to 512 GB) |
| Reset Key |
Yes |
| Ethernet |
1 × RJ45 10/100 Mbps self-adaptive port |
| Event |
|
| Basic Event |
Motion detection (human/vehicle), exception |
| General |
|
| Power |
12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial plug, reverse polarity protection, adapter included |
| Language |
English |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH (non-condensing) |
| Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH (non-condensing) |
| General Functions |
Heartbeat, mirror, password protection, flash log |
| Material |
Front: metal, Back: plastic |
| Dimension |
175.6 × 73 × 89.1 mm (6.9" × 2.9" × 3.5") |
| Package Dimension |
260 × 125 × 125 mm (10.2" × 4.9" × 4.9") |
| Weight |
345 g (0.8 lb) |
| With Package |
635 g (1.4 lb) |
