Hikvision Thermal & Optical Bi-Spectrum Network Bullet Camera, Thermal Module: Res:96×72- Pixel Pitch:12μm-2.6mm Lens- Spectral Range:8 μm~14μm, Optical Module:1/1.8" CMOS - Res:2688×1520, 6mm Lens, WDR 120dB, 30m IR, 1xRJ45 10M/100M, 12VDC/POE
Thermal & Optical Bi-Spectrum Network Bullet Camera
Overview

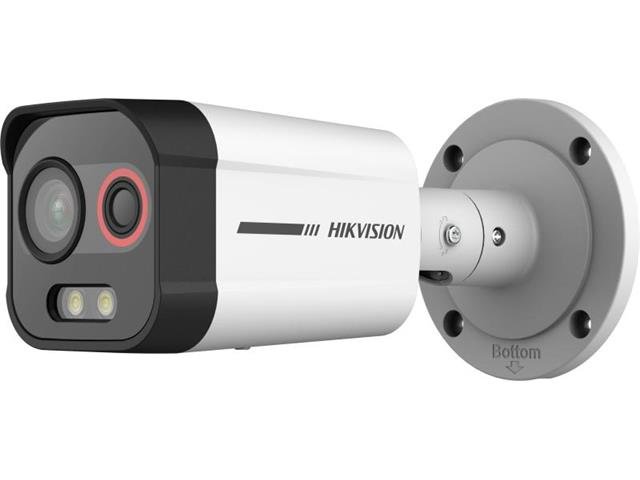

Hikvision DS-2TD2608-2/QA/FP Thermal & Optical Bi-spectrum Network Bullet Camera supports temperature
exception alarm for fire prevention and built-in strobe light and audio warning. The camera also combines ColorVu

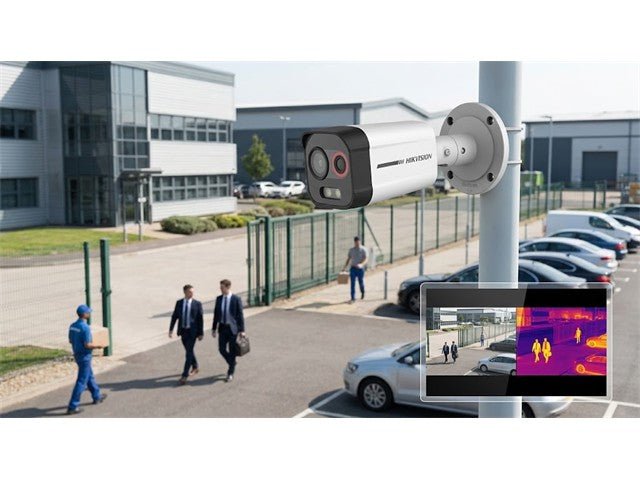

technology to provide 24/7 vivid colorful images. These camera series can be widely applied to villas, communities,
parks, parking lots, warehouses, construction sites, manufacturing workshops, etc.
Feature(s)
- 96 × 72 resolution, 12 μm, VOx UFPA, NETD < 55 mK (25°C, F1.0)
- Temperature exception alarm for fire prevention, -20°C to 300°C (-4°F to 572°F)
- Support fire detection algorithm
- Support smoking detection algorithm
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
Specifications
Thermal Module
-
Image Sensor : Vanadium Oxide Uncooled Focal Plane Arrays
-
Resolution : 96 × 72
-
Pixel Pitch : 12 μm
-
Spectral Range : 8 μm to 14 μm
-
NETD : < 55 mK (25°C, F1.0)
-
Focal Length : 2.6 mm
-
IFOV : 4.62mrad
-
Field Of View : 25.0° × 18.75° (H × V)
-
Min. Focusing Distance : 0.1 m
-
Aperture : F1.0
-
Digital Zoom : ×2, ×4
Optical Module
-
Image Sensor : 1/1.8" Progressive Scan CMOS
-
Resolution : 2688 × 1520
-
Min. Illumination : 0.0003 Lux @（F1.0，AGC ON）, 0 Lux with Light
-
Shutter Speed : 1 s to 1/100,000 s
-
Focal Length : 6 mm
-
Field Of View : 56.0° × 30° (H × V)
-
Aperture (Range) : F1.0
-
WDR : 120 dB
Image Effect
-
Target Coloration : Yes. Supported in white hot and black hot mode.
Illuminator
-
Light Supplement : Warm Light
-
Light Supplement Distance : 30 m
Audible And Visual Alarm
-
White Light Range : Up to 30 m
-
Visual Alarm : Yes. White light alarm with adjustable flashing frequencies
- Audio Alarm
- Yes
- 1 preset voice alerts
- 6 importable user-defined voice alerts
Smart Function
-
Temperature Measurement : 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
-
Temperature Range : -20°C to 300°C (-4°F to 572°F)
-
Temperature Accuracy
- Max (±4°C/7.2°F, ±4%), for ambient temperature 15°C to 35°C (59°F to 95°F)
- Max (±8°C/14.4°F, ±8%)，for other ambient temperature
-
Fire Detection : Support
-
Smoking Detection : Support
Video And Audio
-
Main Stream
- Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288，320 × 240)
- Optical:
- 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
- Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240)
- Optical:
- 50 Hz: 25 fps (704 × 576, 352 × 288)
- 60 Hz: 30 fps (704 × 480, 352 × 240)
-
Video Compression
- Main Stream: H.265/H.264
- Sub-Stream: H.265/H.264/MJPEG
-
Audio Compression : G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Network
-
Protocols : IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS, DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP, IGMP, ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,SSL
-
Network Storage : MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
-
API : ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
-
Simultaneous Live View : Up to 20 channels
-
User/Host Level : Up to 32 users, 3 levels: Administrator, Operator, User
-
Security : User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
-
Client : iVMS-4200, Hik-Connect
-
Web Browser
- Live view (plug-in allowed) : Internet Explorer 11
- Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +,macOS10.13 +,Safari 12+
- Local service : Chrome 57.0 +, Firefox 52.0 +
Interface
-
Alarm Input : 2, alarm input (0-5 VDC)
-
Alarm Output : 2, alarm output (alarm response actions configurable)
-
Alarm Action : Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
-
Communication Interface : 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
General
-
Web Client Language
-
32 languages
- English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
-
Power Supply
- 12 VDC ± 25%, φ 5.5 mm coaxial power plug
- PoE (802.3af, class 3)
-
Power Consumption
- 12 VDC ± 25%: 0.7 A, Max.8.5 W
- PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
- Working Temperature/Humidity : Temperature: -40°C to 70°C (-40°F to 158°F)
- Humidity: 95% or less
-
Protection Level
- IP67 Standard
- TVS 4000V lightning protection, surge protection, voltage transient protection
- IK10-rated housing
-
Dimensions : 211.5 mm × 105 mm × 105 mm (8.32" × 4.13" × 4.13")
-
Weight : 869.2 g (1.92 lb)
