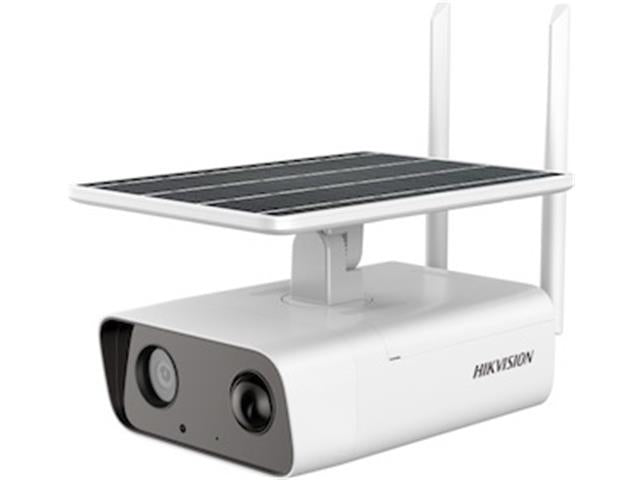

• Detects human body through passive infrared which is sensitive to body temperature (PIR)
• Standalone with built-in solar panel and battery
• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP66)
• Support remote control with Hik-Connect APP

Camera

• Image Sensor : 1/3" Progressive Scan CMOS
• Min. Illumination : Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Max. Resolution : 2688 × 1520
• Shutter Speed : 1/3 s to 1/100,000 s
• Day & Night : IR cut filter

Lens

• Lens Type : Fixed focal lens, 2.8 mm
• Aperture : F1.6
• Lens Mount : M12
• Iris Type : Fixed
• Focal Length & FOV : 4 mm, horizontal FOV 83.7°, vertical FOV 44°, diagonal FOV 99.5°

DORI

• DORI : 2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m

Illuminator

• Supplement Light Range
  • Performance mode: up to 30 m
  • Proactive mode: up to 10 m
• IR Wavelength : 850 nm
• Smart Supplement Light : Yes

Video

• Main Stream
  • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)
• Video Compression
  • Main stream: H.265+(performance mode)/H.265/H.264+(performance mode)/ H.264
  • Sub-stream : H.265/H.264/MJPEG
• Video Bit Rate : 32 Kbps to 8 Mbps
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.265 Type : Main Profile
• Bit Rate Control : CBR/VBR
• Scalable Video Coding (SVC) : H.264 and H.265 encoding
• Region of Interest (ROI) : 1 fixed region for main stream

Audio

• Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering : Yes
• Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
• Audio Bit Rate : -S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

• Simultaneous Live View : Up to 6 channels
• API : EZVIZ
• Protocols : TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP,
  QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/Host : Up to 32 users. 3 user levels: administrator, operator and user
• Security : Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage : Auto network replenishment (ANR)
• Client :
  • iVMS-4200, Hik-Connect, Hik-Central
  • Proactive mode: Hik-Connect
• Web Browser
  • Plug-in required live view: IE 10+
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+

Mobile Communication

• Frequency
  • LTE-TDD: Band 38/40/41;
  • LTE-FDD: Band 1/3/5/7/8/20/28;
  • WCDMA: Band 1/5/8;
  • GSM: band 3/5/8
  • LTE-TDD, LTE-FDD, WCDMA, GSM


• Wide Dynamic Range (WDR) : 120 dB
• Day/Night Switch : Day, Night, Auto, Schedule
• Image Enhancement : BLC, HLC, 3D DNR, Defog, EIS, Distortion correction
• Image Settings : Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

PIR

• PIR Range : Up to 10 m

Interface

• Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage
  • Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
  • Built-in 8 GB eMMC storage (6 GB avaible for recording)
• Built-in Microphone : Yes
• Built-in Speaker : Yes
• Reset Key : Yes

Event

• Basic Event : PIR, exception
• Linkage : Upload to memory card, notify surveillance center, audible warning, trigger recording,
  trigger capture, send email

General

• Power
  • Typical power scenarios: 1.85 W (4G working)
  • Standby scenarios: 40 mW
  • Max. power consumption: 4.8 W
  • Power supply: 5 VDC ± 10%, reverse polarity protection
  • Power supply interface: microUSB
  • Extened solar panel: Ø 3.5 mm, 5 VDC
• General Function : Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel
  counter
• Startup and Operating Conditions : 0 °C to 40 °C (32 °F to 104 °F), humidity 95% or less (non-condensing)
• Dimension  : 245.8 mm × 156 mm × 214 mm (9.7" × 6.1" × 8.4")
• Weight : 4G model: approx. 1235 g (2.7 lb.)
• PV Panel :
• Dimension: 205.1 mm × 145.1 mm × 2.35 mm (8.1" × 5.7" × 0.1")
• Capacity : 5 W
• Standard testing condition: AM = 1.5, 25 °C (77 °F), 1000 W/m², SMQ + 12%

Battery

• Battery Type : Ternary lithium
• Capacity : 10 Ah
• Max. Charging Voltage : 4.25 V
• Operating Temperature :
  • 0 °C to 50 °C (32 °F to 122 °F)
  • Charging Condition: 0 °C to 50 °C (32 °F to 122 °F) (deviation: ± 5 °C)
  • Discharging Condition: -20 °C to 60 °C (-4 °F to 140 °F) (deviation: ± 5 °C)
• Battery Voltage : 3.0 V to 4.2 V
• Cycle Lifetime
  • Low consumption real-time mode: 1 day (at the rate of one-hour alarm and half-hour
    remote live view per day)
  • Wakeup Mode: 7 days (at the rate of 1.67-hour remote live view per day)
• Battery Life : More than 500 cycles
• Battery Weight : Approx. 185 g (0.4 lb.)

1. Datasheet - HKV DS-2XS2T41G0-ID/4G/C04S05
