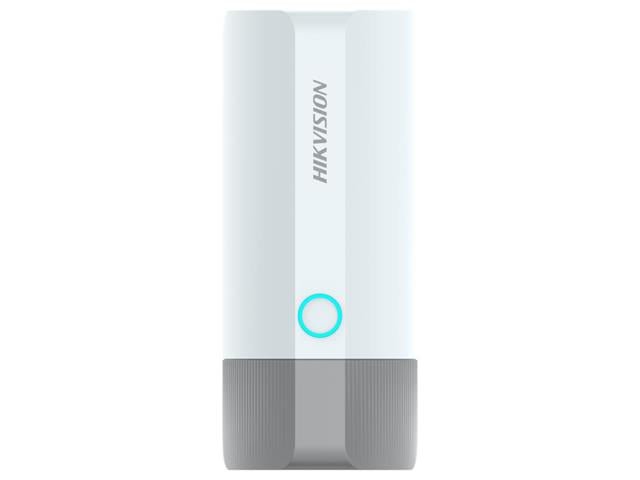

DS-3WAP623E-SI wireless access point is a new generation of outdoor 802.11ax AP products developed by IEEE 802.11 working group. The product adopts the design of dual radio frequency and four streams to solve the outdoor and other harsh environment coverage scenarios. Meeting the wireless coverage requirements of outdoor scenarios such as small, medium and micro enterprises.

• 1 Gigabit Port with PoE Input
• 802.11ax Wi-Fi 6 2975 Mbps
• 100+ Concurrent User Connections
• Auto RF Optimization
• Support Intelligent Fast Roaming

General

• Weight : 1.07 kg (2.35 lb)

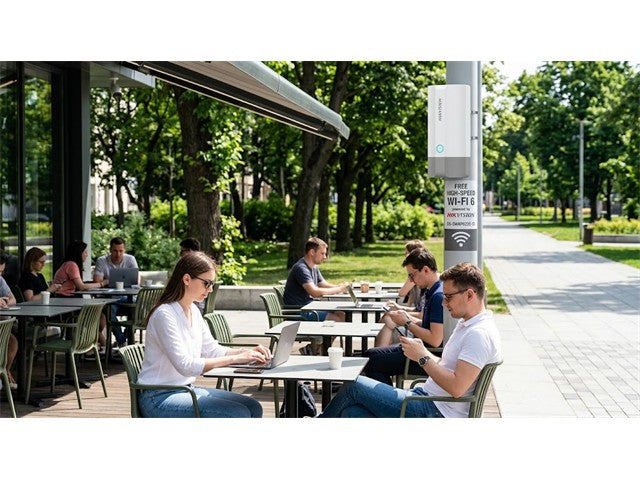

• Installation Mode : Wall-Mounted, Pole- Mounted
• Working Temperature : -30 °C to 55 °C (-22 °F to 131 °F)
• Working Humidity : 5% to 95% (no condensation)
• Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
• Storage Humidity : 5% to 95% (no condensation)
• Product Dimensions (W × H × D) : 102 mm × 110 mm × 250 mm (3.97'' × 4.33'' × 9.84'')
• Packing List : 3000 M Access Point ×1, Screw Pack × 1, Quick Start Guide ×1, Regulatory Compliance and Safety Information × 1
• Power Consumption : Max. 14.4 W

WLAN Parameters

• Maximum Number of Clients : 256
• Recommended Number of Clients : 100
• Maximum Number of SSIDs : 8
• Working Frequency Band : radio 1: 5G(11a/n/ac/ax), radio 2: 2.4G(11b/g/n/ax)
• Wi-Fi Standards : Wi-Fi 6
• Wi-Fi Speed : 2.4 GHz: 575 Mbps, 5 GHz: 2400 Mbps
• Spatial Streams : 2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO
• Channel Width : 2.4 GHz: Auto/20 /40 MHz, 5 GHz: Auto/20 /40 /80/160 MHz
• Number of Antennas : 2.4GHz: 2; 5GHz: 2
• Antenna Type : Built-in omnidirectional antennas
• Antenna Gain : 2.4 GHz: 10 dBi, 5 GHz: 5 dBi
• Transmit Power : 23 dBm
• Modulation Technology : OFDM: BPSK@6/9Mbp, QPSK@12/18Mbps, 16-QAM@24Mbps,
  64-QAM@48/54Mbps; DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps;
  MIMO-OFDM (11n): MCS 0-15; MIMO-OFDM (11ac): MCS 0-9; MIMO-OFDM (11ax):
  MCS 0-11;

Software Specifications

• WLAN Security : WAP-PSK, WAP2-PSK, WPA-WAP2-PSK, WAP3, Blocklist & Allowlist, Support Multiple encryption key triggered dynamic unicast/multicast key update, Support Open
  system/shared key authentication, Support wireless endpoint access, Support 802.11i,
• Support SSID and VLAN binding
• Management & Maintenance : Centralized AC management
• Version Upgrade : upgrade on AC Web

Hardware Specifications

• Interface : 1 × Gigabit RJ45 uplink port
• Power Supply : IEEE 802.3af/at POE, 48 VDC 0.3A
• LED Indicator : Yellow/green/blue for different working states, flashing mode
• Reset Button : Hardware Resetting Button

1. Datasheet - HKV DS-3WAP623E-SI

Device	Access Point
Type	WiFi | 6 3000Mbps | Outdoor
