Hikvision 8CH Turbo HD/AHD DVR H.264+/H.265/265 Pro+, HDTVI/AHD/CVBS-1080P/720P/WD1/4CIF/VGA/CIF(PAL~25fps/ NTSC~30fps), VIDEO I/P 8xBNC, TCP/IPx1/32Kbps-4Mbps, 1xSATA, 2xUSB 2.0, 1xHDMI, VGA, 1xRCA I/P & O/P, Up to 4TB CAP Per Disk.

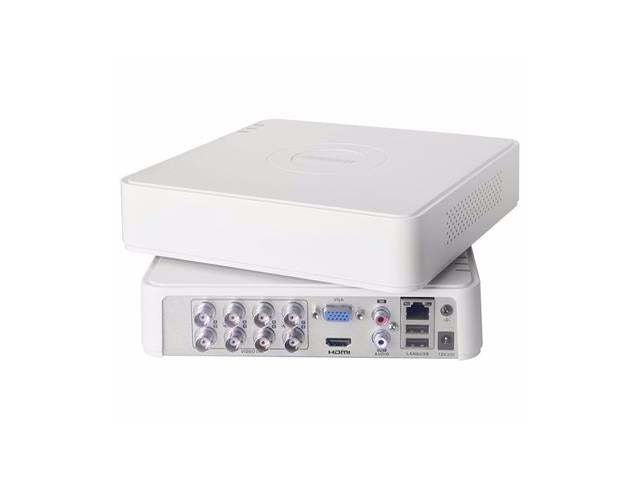

8CH Turbo HD/AHD DVR
Feature(s)
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 10-ch IP camera inputs (up to 5 MP)
- Up to 1080p Lite@15 fps encoding capability
- Max. 1200 m for 720p HDTVI signal

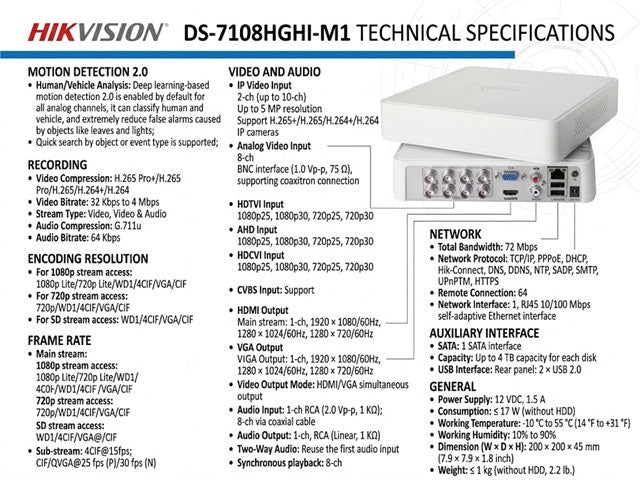

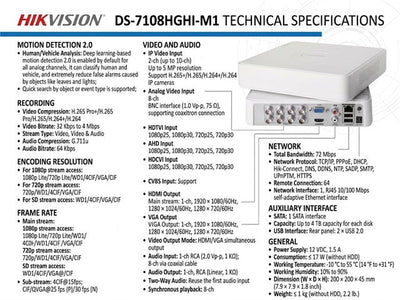

Specifications
Motion Detection 2.0
- Human/Vehicle Analysis
- Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
- Quick search by object or event type is supported;
Recording
- Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
- For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
- For 720p stream access: 720p/WD1/4CIF/VGA/CIF
- For SD stream access: WD1/4CIF/VGA/CIF
- Frame Rate
- Main stream:
- For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
- For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
- For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- Sub-stream:
- 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
- Video Bitrate : 32 Kbps to 4 Mbps
- Stream Type : Video, Video & Audio
- Audio Compression : G.711u
- Audio Bitrate : 64 Kbps
Video and Audio
- IP Video Input
- 2-ch (up to 10-ch)
- Up to 5 MP resolution
- Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
- 8-ch
- BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input : 1080p25, 1080p30, 720p25, 720p30
- AHD Input : 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
- CVBS Input : Support
- HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Video Output Mode : HDMI/VGA simultaneous output
- Audio Input
- 1-ch RCA (2.0 Vp-p, 1 KΩ)
- 8-ch via coaxial cable
- Audio Output : 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio : Reuse the first audio input
- Synchronous playback : 8-ch
Network
- Total Bandwidth : 72 Mbps
- Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnPTM, HTTPS
- Remote Connection : 64
- Network Interface : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
- SATA : 1 SATA interface
- Capacity : Up to 4 TB capacity for each disk
- USB Interface : Rear panel: 2 × USB 2.0
General
- Power Supply : 12 VDC, 1.5 A
- Consumption : ≤ 17 W (without HDD)
- Working Temperature : -10 °C to 55 °C (14 °F to +31 °F)
- Working Humidity : 10% to 90%
- Dimension (W × D × H) : 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
- Weight : ≤ 1 kg (without HDD, 2.2 lb.)
Downloads
Additional Information
| Device |
DVR |
| Type |
8CH | Turbo | HD/AHD |
