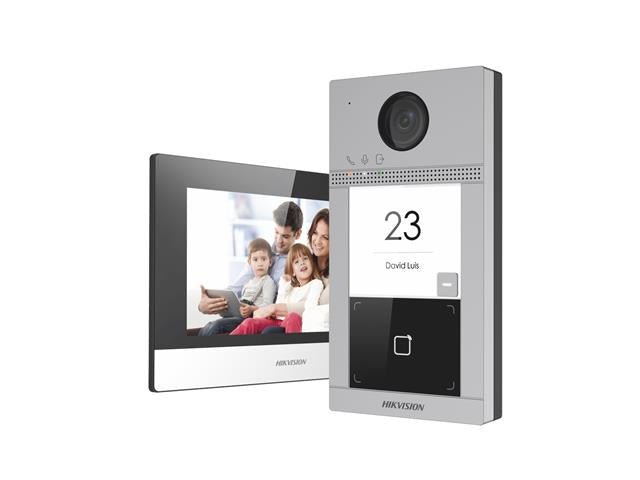

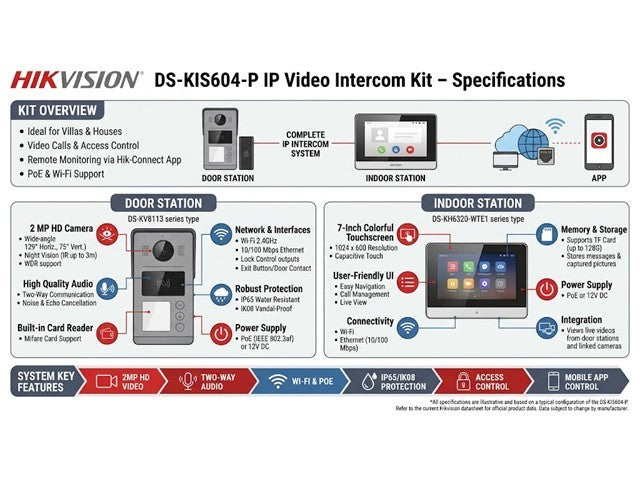

Door station
System parameters
Operation system : Embedded Linux operation system
Flash : 32 M
RAM : 256 M
Video parameters
Supplement light : IR supplement
Resolution
Main stream : 1920 × 1080
Sub stream : 640 × 480
Lens : 1
WDR : Support
FOV : Horizontal: 124° Vertical: 75°
Video compression standard : H.264
Audio parameters
Audio input : Built-in omnidirectional microphone
Audio output : Built-in loudspeaker (more than 80 dB within 30 cm)
Volume adjustment : Adjustable
Audio compression standard : G.711 U, G.711 A
Audio compression Rate : 64 Kbps
Audio intercom : Two-way audio communication
Audio quality : Noise suppression and echo cancellation
Capacity parameters
User capacity : 2000
Network parameters
Network protocol : TCP/IP, RTSP
Wi-Fi : Wi-Fi 802.11 b/g/n
Wired network : 10/100 Mbps self-adaptive Ethernet
Device interface
Network interface : 1
RS-485 : 2
Lock control : 2
Exit button : 2 Max.
Door contact : 2
Alarm input : 4
Power interface : 1
TAMPER : 1
TF card : 1 (reserved)
General
Button : 1
Power consumption : < 10 W
Indicator : 3
Working temperature : -40° C to 53° C(-40° F to 127.4° F)
Power supply : Standard PoE/12 VDC
Working humidity : 10% to 95%
Dimension 174 mm × 91 mm × 29 mm
Installation : Surface mounting
Application environment : Outdoor
Protection level : IP65, IK08
Weight : 380 g
Indicator : 3
Power supply
IEEE802.3af, standard PoE
12 VDC
Indoor station System parameters
Operation system : Embedded Linux operation system
Memory : 128 MB
Flash : 32 MB
Display parameters
- Display screen : 7-inch colorful TFT screen
- Display resolution : 1024 × 600
- Operation method Capacitive touch screen
Audio parameters
- Audio input : Built-in omnidirectional microphone
- Audio output : Built-in loudspeaker
- Audio quality : Noise suppression and echo cancellation
- Audio compression standard : G.711 U
- Audio compression Rate : 64 Kbps
Network parameters
- Wired network : 10/100 Mbps self-adaptive
- Network interface : 1 RJ-45 10/100 Mbps self-adaptive
- Wireless network : Wi-Fi 802.11 b/g/n
- Protocol : TCP/IP, SIP, RTSP
Device interface
- RS-485 : 1
- Alarm input : 8-ch alarm inputs
- Relay output : 2
- TF card Max to 32 G, SD 2.0 or lower version
General
- Power consumption : ≤ 6 W
- Power supply : Standard PoE,12VDC
- Working temperature : -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity : 10% to 90%
- Dimension (L x W x H) : 200 mm × 140 mm × 15.1 mm (7.9"" × 5.5"" × 0.6"")
