HKV DS-PM1-D

SKU: HKV DS-PM1-D

BRAND: Hikvision


Hikvision 12V Power Supply Unit Module

12V Power Supply Unit Module

Overview

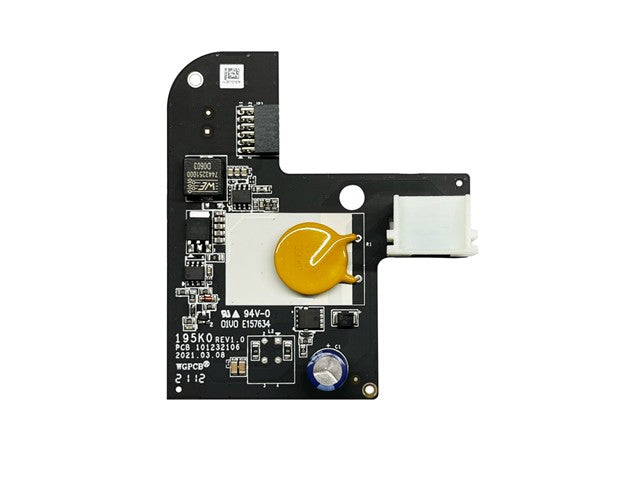

DS-PM1-D PSU module is a power supply unit, connecting AX PRO to 8~24v low-voltage power sources, which is applied in areas lacking mains power or having unstable power supply. It is convenient to install and connect to a portable battery.

Feature(s)

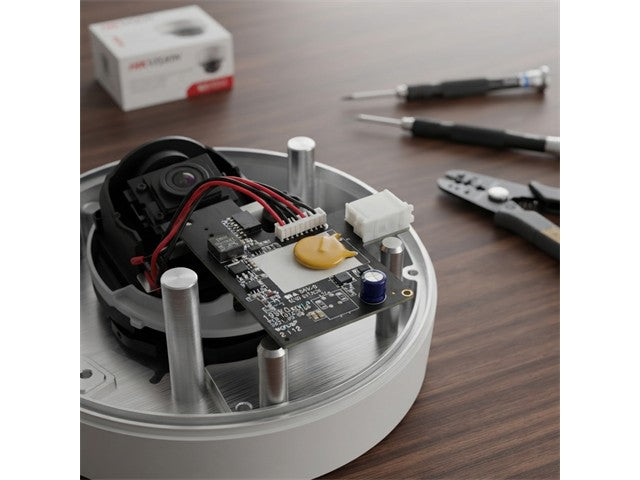

  • Compatible with AXPRO control panels
  • Convenient installation for users
  • 8~24 VDC wide range of power supply

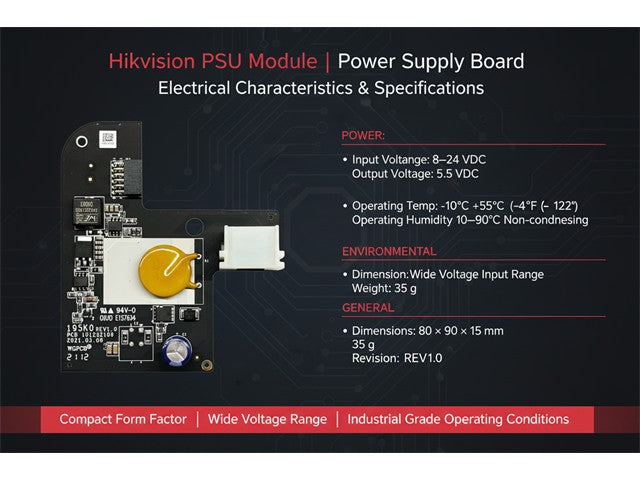

Specifications

Electrical characteristics

  • Power supply : 8~24 VDC
  • Operation humidity : 10% to 90% (No condensing)
  • Operation temperature : -10 °C to +55 °C (-4 °F to +122 °F)
  • Input Current : Up to 2A
  • Output Current : Up to 2A
  • Output Voltage : 5.5 VDC

General

  • Dimension(WxHxD) 80*90*15mm
  • Weight 35g

Downloads

Additional Information

Device Module
Type 12V | Power Supply Unit
