Overview

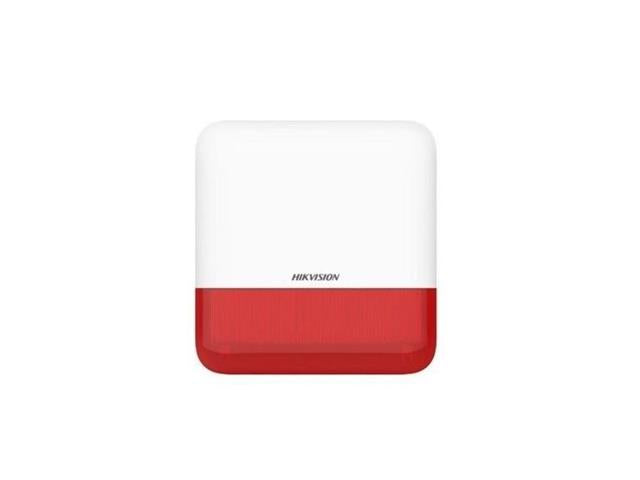

The wireless external sounder, supporting 868 Mhz wireless
communication, Tri-X wireless protocol, multiple
enrollment methods, two-way wireless communication,
multiple alarm sounds, and strobe light indication, is used
for instant alarm alerting.
Features
- 868 MHz two-way wireless communication
- 3 years battery life span (triggered every two weeks and alerting 90 s for each triggering)
- AES-128 encryption
- Front and rear panel tamper-proof
- 3 kinds of alarm sounds: fire alarm, panic alarm, and intrusion alarm
- Buzzer Decibel: 110 dB
- Fully remote configurable through App
- Multiple enrollment methods and easy installation design
- Frequency hopping against jamming for reliable transmission
- IP65 protective level
Specifications
RF
- Frequency 868 MHz
- Modulation 2GFSK
- Method Two-way communication
- RF encryption AES-128
- RF distance 1.6 km (open area)
Electrical & battery
- Power : Battery (default power supply method) or 12 VDC
- Consumption : Static consumption: 30 to 40uA
- Battery life span : 4 CR123A, 3 years in work status (triggered every two weeks and alerting 90 s for each triggering)
Interface and component
- Power switch : Supported
- Tamper switch : Supported, Front and rear tamper-proof
Indicator :
- Indicator: Red/Green
- Strobe light: Red/Blue(white on the board)
- Buzzer : Decibel: 110 dB
General
- Operation temperature : -20 °C to 60 °C (-4 °F to 140 °F)
- Operation humidity : 10% to 90% (no condensing)
- Color : White
- Material : PC+ABS
- Dimension (W × H × D) : 190× 200 × 47. 3mm .(7.48" ×7.87" × 1.86")
- Weight : 606.5 g (21.4 oz)
- Protection level : IP65
- Installation : Wall mounting
Downloads
Additional Information
| Device |
Sounder |
| Type |
Wireless | Outdoor |
