• Deep learning-based motion detection 2.0 for all analog channels
• Deep learning-based perimeter protection
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Audio via coaxial cable
• Up to 6/12/24-ch IP camera inputs (up to 6 MP)
• Up to 10 TB capacity per HDD

• Motion Detection 2.0¹

Human/Vehicle Analysis

• Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms
  caused by objects like leaves and lights;
• Quick search by object or event type is supported;

Perimeter Protection¹

• Human/Vehicle Analysis : Up to 2-ch

Recording

• Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding resolution

• Main stream:
• When 1080p lite mode not enabled:
• For 4 MP stream access:
• 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
• For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
• For 1080p stream access:
• 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• When 1080p Lite mode enabled:
• 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• Sub-stream:  WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
• Video bitrate : 32 Kbps to 6 Mbps
• Dual stream : Support
• Stream type : Video, Video & Audio
• Audio compression : G.711u
• Audio bitrate : 64 Kbps

Video and Audio

IP video input²

• 1-ch (up to 5-ch)
• Enhanced IP mode on : 2-ch (up to 6-ch), each up to 4 Mbps
• Up to 6 MP resolution
• Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog video input : 4-ch
• BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI input

• 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
• The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/S,
• for channel 1/2 of iDS-7208HQHI-M1/S, and for channel 1/2/3/4 of iDS7216HQHI-M1/S.
• AHD input : 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• HDCVI input : 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

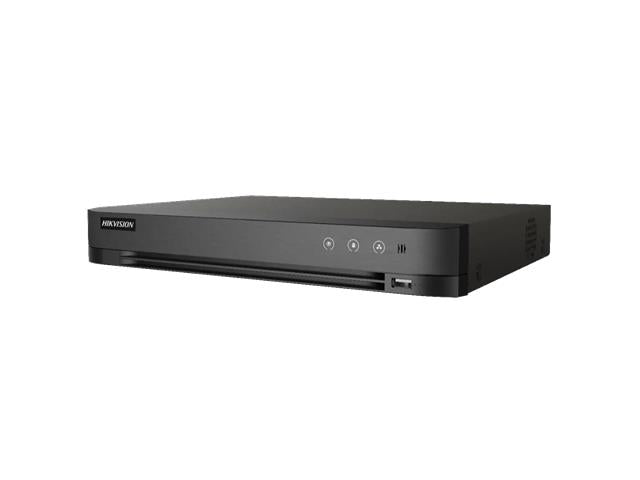

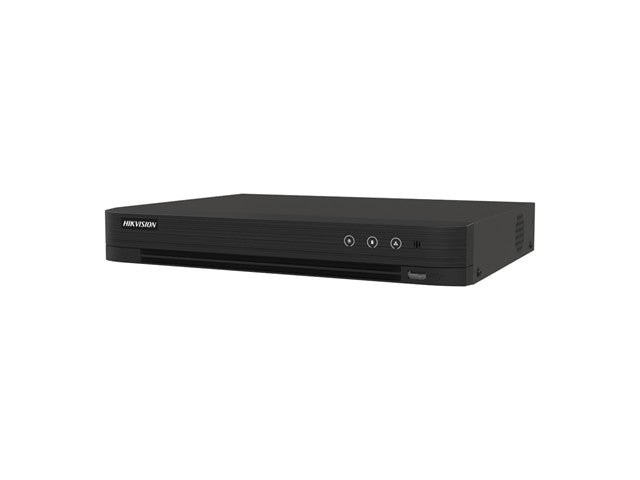

1. Datasheet - HKV IDS-7204HQHI-M1/S
