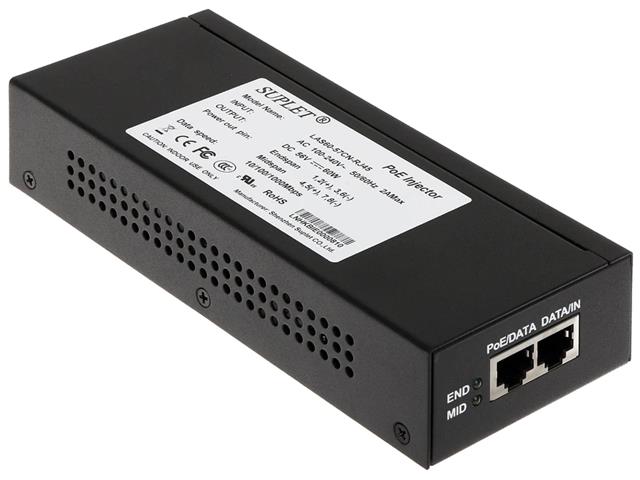

Hikvision POE Injector 60W 2A , O/P Voltage Range:54V~57V , 2x10/100/1000M Adaptive RJ45 Ports, One is DATA/IN, Another is PoE/DATA , Short Circuit Protection , 473g
POE Injector 60W 2A
Overview
Hikvision POE midspan is designed to extract power from a conventional twisted pair Category 5 Ethernet cable,
conforming to the IEEE 802.3at Power-over-Ethernet (PoE) standard.
The converter signature and control circuit provides the PoE compatibility signature and power classification
required by the Power Sourcing Equipment (PSE) before applying up to 60W power to the port.
Features
- RoHS compliant
- Compatible With All IEEE pre 802.3af, 802.3at and Legacy Powered Devices
- Input voltage:90Vac~264Vac
- Support 300Vac input for long time work
- Output over current protection
- Short circuit protection
- MTBF ≥1,000,000 hrs
- Surge protection
- CE mark
- WEEE compliant

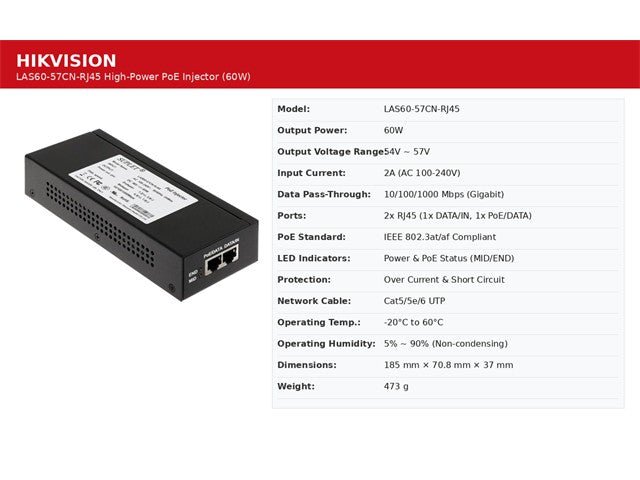

Specifications
- Input Current : 2A
- Output Voltage Range : 54V~57V
- Output Power : 60W
- Pass Through Data Rates : 10/100/1000 Mbps
- Ports : Two 10/100/1000M adaptive RJ45 ports, one is DATA/IN, another is PoE/DATA
- LED Indicator : Power & PoE Status(The module operates normally when MID and END are on)
- Base Function : Compliance to IEEE 802.3 at/af Standard for PD
Network Medium
- 10BASE-T: unshielded twisted pair category 3, 4 or 5
- 100BASE-TX: unshielded twisted pair category 5 and above
- 1000BAST-TX: unshielded twisted pair category 5 and above
- Protection Methods : Output Over Current Protection, Short Circuit Protection
- Operating Humidity : 5% ~ 90%
- Weight : 473g
- Dimension : 185mm*70.8mm*37mm (L*W*H)
- Operating Temperature : -20 ~ 60 °C
Downloads
Additional Information
| Device |
POE Injector |
| Type |
60W | 2A |
