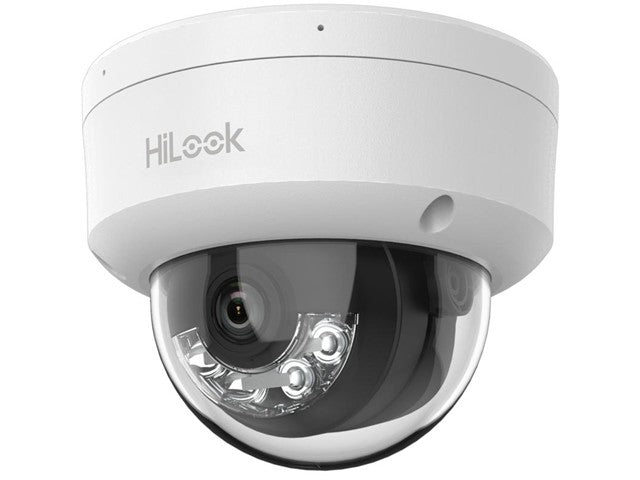

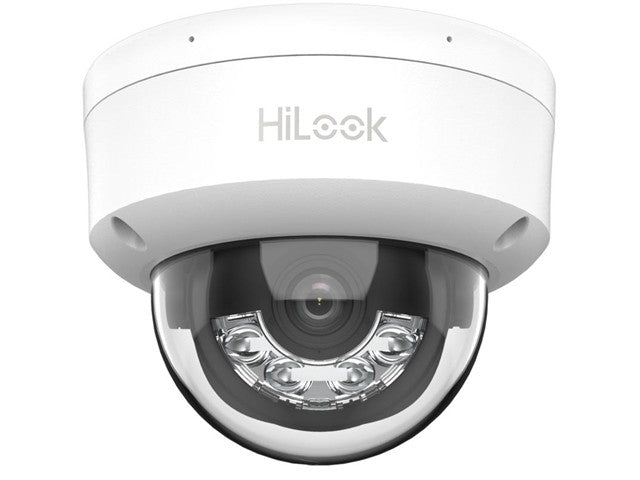

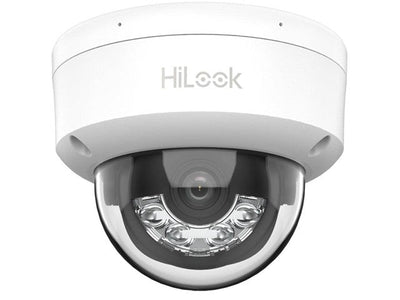

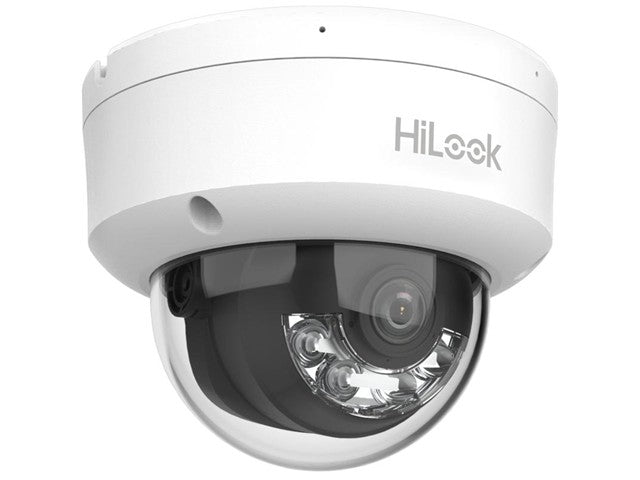

HiLook Dome Network Camera 4MP 2.8mm Lens, Up to 30m IR, 1/3" CMOS , H.265+, Built-in Microphone, 32 Kbps~8Mbps, CBR, VBR, iVMS-4200, HiLookVision, Smart Dual-Light, WDR, 1xRJ45 10M/100M, 12VDC ± 25%, 0.5A, PoE:802.3af Class 3 Max:7.5W, IP67
4 MP Fixed Dome Network Camera
Feature(s)
- High quality imaging with 4 MP resolution
- Support Human and Vehicle Detection
- Smart Dual-Light: advanced technology with long range
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67) and vandal resistant (IK08)
- Efficient H.265+ compression technology
Specifications
Camera
| Image Sensor |
1/3" Progressive Scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0°–355°, Tilt: 0°–75°, Rotate: 0°–355° |
Lens
| Lens Type |
Fixed focal lens, 2.8 mm |
| Focal Length & FOV |
2.8 mm: H 98°, V 54°, D 114°<br>4 mm: H 78°, V 42°, D 93° |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
| Aperture |
F1.6 |
DORI (Detection, Observation, Recognition, Identification)
| Focal Length |
D |
O |
R |
I |
| 2.8 mm |
63 m |
25 m |
12 m |
6 m |
Illuminator
| Category |
Specification |
| Supplement Light Type |
IR, White Light |
| Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
Video
| Category |
Specification |
| Main Stream (50 Hz) |
20 fps (2560×1440), 25 fps (1920×1080, 1280×720) |
| Main Stream (60 Hz) |
20 fps (2560×1440), 24 fps (1920×1080, 1280×720) |
| Sub-Stream (50 Hz) |
25 fps (1280×720, 640×480, 640×360) |
| Sub-Stream (60 Hz) |
24 fps (1280×720, 640×480, 640×360) |
| Compression |
Main: H.265+/H.265/H.264+/H.264<br>Sub: H.265/H.264/MJPEG |
| Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline, Main, High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR, VBR |
| ROI |
1 fixed region for main stream |
Audio
| Type |
Mono sound |
| Noise Filtering |
Yes |
| Sampling Rate |
8 kHz / 16 kHz |
| Compression |
G.711ulaw/alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Bit Rate |
64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC) |
Network
| Security |
Password protection, watermark, HTTP/WSSE authentication, audit log, MAC authentication |
| Live View |
Up to 6 channels |
| API |
ONVIF (Profile S, T), ISAPI, SDK |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Users |
Up to 32 users (admin, operator, user) |
| Client Software |
iVMS-4200, HiLookVision |
| Web Browser |
IE 10/11 (plug-in), Chrome 57+, Firefox 52+ (local service) |
| WDR |
120 dB |
| SNR |
≥ 52 dB |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Enhancement |
BLC, HLC, 3D DNR |
| Settings |
Rotate, saturation, brightness, contrast, sharpness, gain, white balance |
| Privacy Mask |
4 programmable polygon masks |
Interface
| Ethernet |
1 RJ45 10/100M self-adaptive |
| Microphone |
Built-in |
Event
| Basic Events |
Motion detection, tampering, exception |
| Linkage |
FTP upload, email, surveillance center, capture trigger |
General
| Power |
12 VDC ±25%, 0.5 A, max 6 W, PoE IEEE 802.3af Class 3, max 7.5 W |
| Material |
Metal & Plastic |
| Dimensions |
Ø121.4 mm × 97.7 mm (Ø4.8" × 3.8") |
| Package Dimensions |
150 × 150 × 141 mm (5.9" × 5.9" × 5.6") |
| Weight |
550 g (1.2 lb), with package: 800 g (1.8 lb) |
| Storage/Operating Conditions |
-30 °C to 60 °C, ≤ 95% RH (non-condensing) |
| Languages |
English, Ukrainian |
| Functions |
Heartbeat, anti-banding, mirror, password protection, reset via email |
Downloads
Additional Information
| Device |
Camera |
| Type |
4 MP | Fixed Dome | Network |
