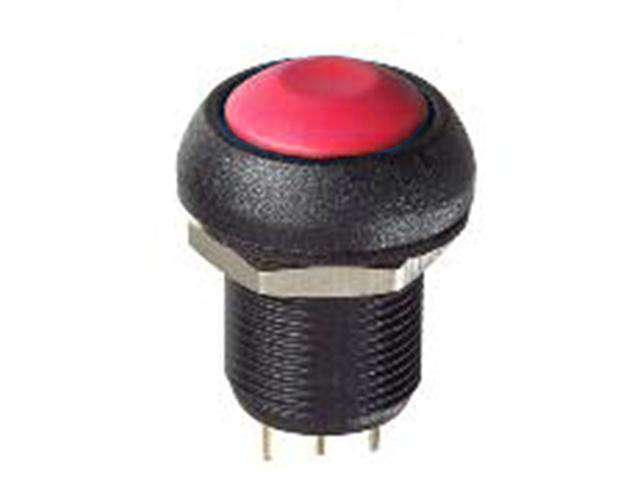

IMR7Z462

• Snap-action : tactile feedback with audible click
• High current/voltage rating
• Sealed to IP67
• Flat round actuator for optional marking

Environmental Specifications

• Front Panel Sealing : IP67 according to IEC 60529
• Shock Resistance : 50g - 11ms according to IEC 68-2-27
• Salt Spray : IEC 512-6, test 11f
• Operating Temperature : -40°C to +85°C
• Storage Temperature : -40°C to 85°C

Electrical Specifications

• Max. current/voltage rating with resistive load : 3A 28VDC
• Initial Contact Resistance : 100 mΩ max.
• Insulation Resistance : 1 GΩ min. at 500VDC
• Dielectric Strength : 500 Vrms between terminals
• Electrical Life at Full Load : 25.000 cycles

General Specifications

• Panel Thickness : 1.5 mm (.059) to 10 mm (.394)
• Total Travel : 1.7 mm (.067) ±0,3 mm
• Low Level or Mechanical Life : 1.000.000 cycles
• Torque : 1.5 Nm ma
