INT-PIR ID W/LESS 06A 3VDC

SKU: INT-PIR ID W/LESS 06A 3VDC

BRAND: Communica


Indoor Wireless PIR Detector, Detecting Range: 12m Max, Wireless Distance: No Obstacle 80m Line of Sight, 3V DC Dry Battery (2 * AAA), Detecting Angle 110 Degrees Horiz, 60 Deg Vertical

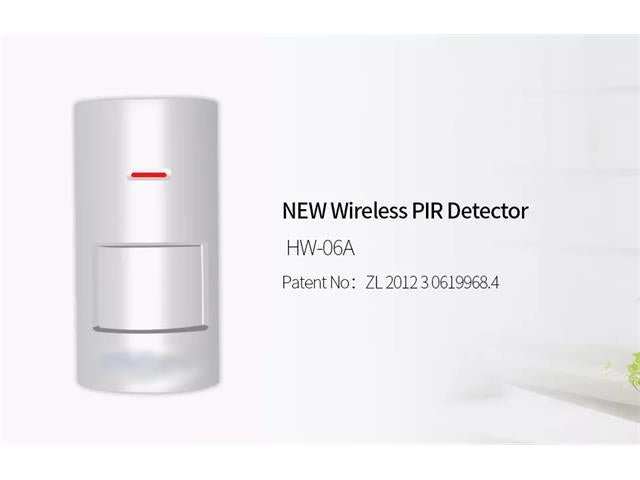

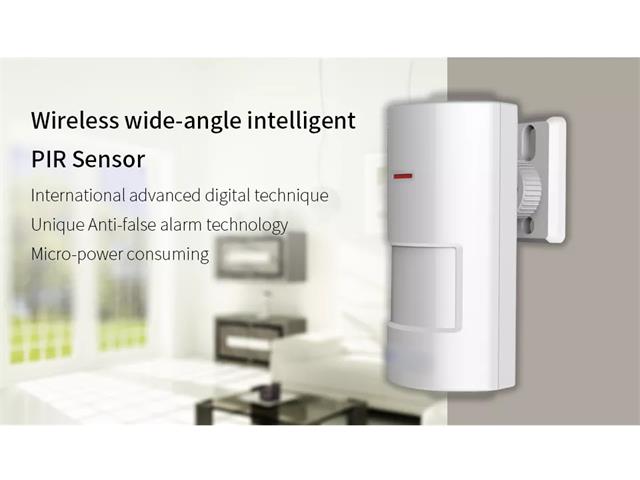

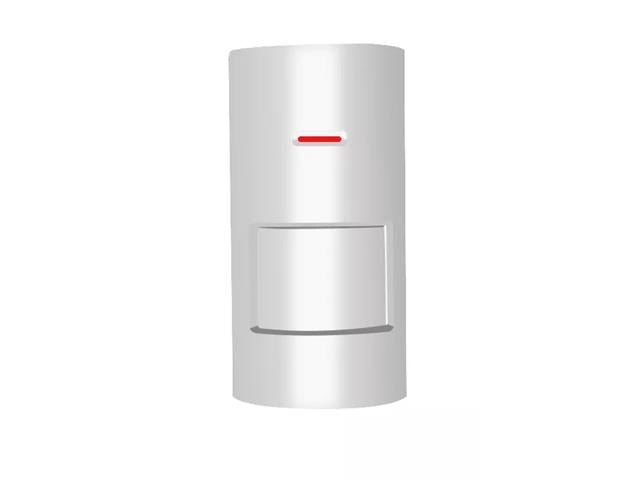

Indoor Wireless PIR Detector

Features

  • This product is a special home and business PIR detector with delicate and modern design, adopting the latest technology of smart logic IC and high-performance sensor to achieve high stability and anti-strong light function and avoid false alarm.
  • High technology to distinguish interference and motion signal;
  • Re-detecting time adjustable: extend life span of the battery;
  • Low standby current (30uA) to extend the battery life;
  • Tamper alarm function: send signal to the control panel when the cover is open;

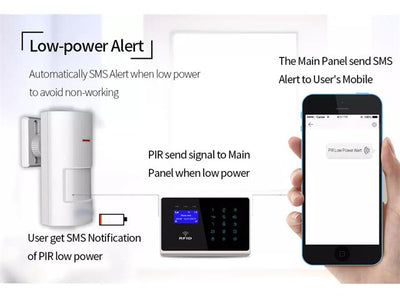

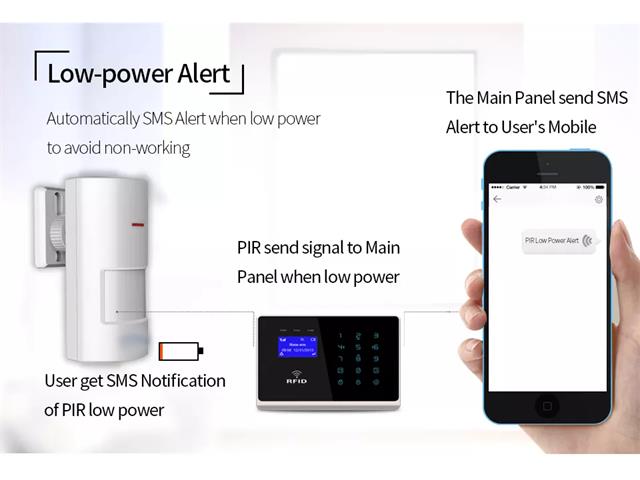

  • Low power alert function: inform users to change batteries in time.

Specifications

Sensor



Passive IR sensor



Working voltage



DC6V (4pcs AAA 1.5V dry batteries)



Static current



<30uA



Alarm current



15mA



Transmitting frequency



315/433+0.5MHZ



Transmitting distance



no obstacle 80M



Detecting distance



12M max

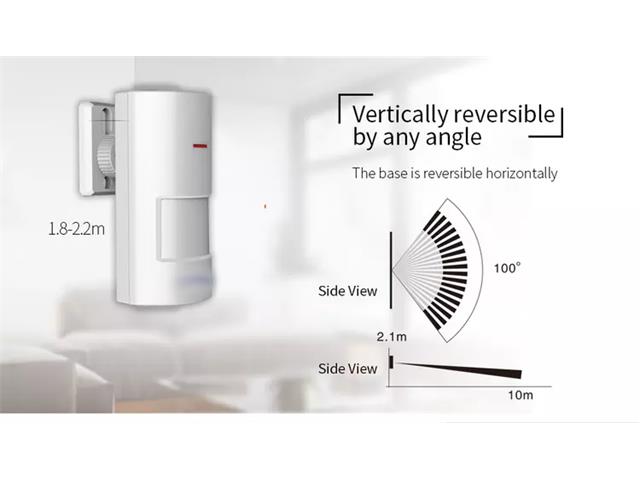

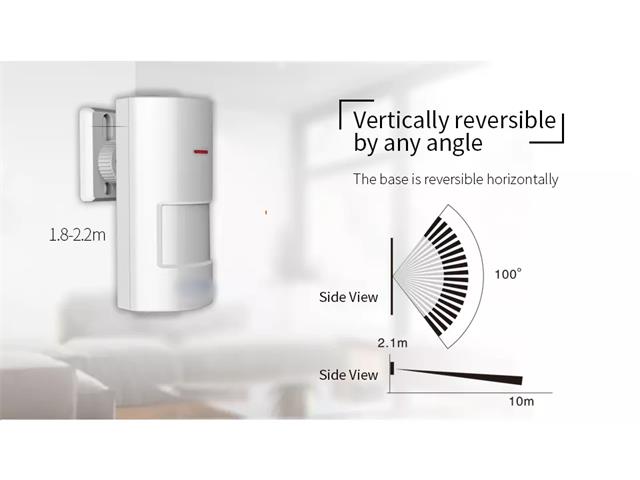

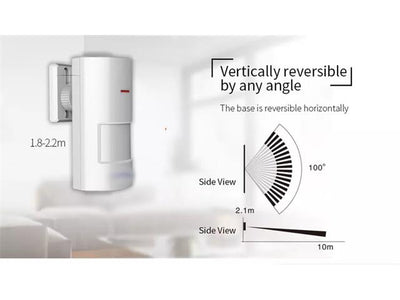

Detecting angle



Horizontal 110°, Vertical 60°



Working Temperature



+0~+45℃



Coding method



PT2262 or EV1527 optional

Additional Information

Device Detector
Type Indoor | Wireless | PIR
