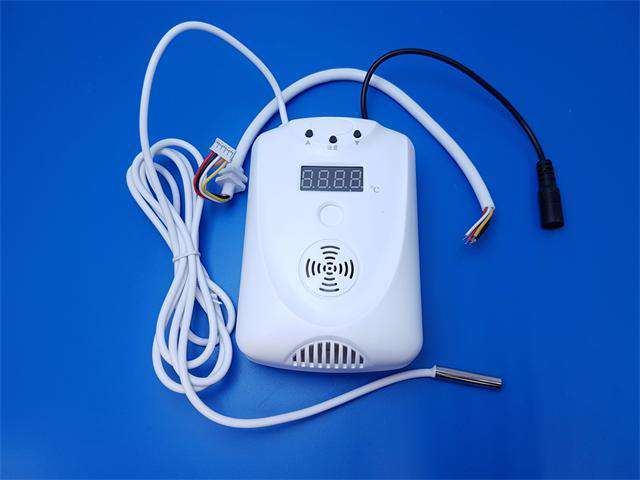

INT- TEMPERATURE SENSOR

This product is a heat detector with adjustable alarm temperatures. With unique structure design, the detector adopts MCU to intelligently process signal from temperature sensor, ensuring stability from design basis. Maximum and minimum alarm temperatures can be set simultaneously. Suitable for temperature monitoring in various places such as homes, factories, shops, hotels, offices, schools, banks, libraries and warehouses etc.

• MCU Processing, Stability Improved A
• Auto Reset/ Power-off Reset Selectable
• High Precision NTC Thermal Sensor
• 4 Digits Temperature LED Display
• Max and Min Alarm Temperatures Can Be Set Simultaneously
• Actual Temperature Can Be Calibrated
• Relay Alarm Output
• Relay Alarm Delay Time Settable
• Wide Operating Voltage
• SMT Manufacture Technology, High Stability

• Operating Voltage : DC 12V
• Standby Current : <28mA(NC)
• Alarm Current : <73mA(NC)
• Temperature Sensor : NTC/20K
• Detecting Temperature : -10°C ~ +100°C
• Resolution : ±1°C
• Output Signal : Relay Output
• Working Temperature : -10°C ~ +50°C
• Relative Humidity : <95% RH
• Dimension : 118.5x82x43mm

Wiring Diagram

• Power Wires : Red and Black, Non-polar Input
• Signal wires : White is Relay COM Output
• Yellow is Relay NC Output
• Orange is Relay NO Output
