KSCD60D4-12

SKU: KSCD60D4-12

BRAND: Kudom

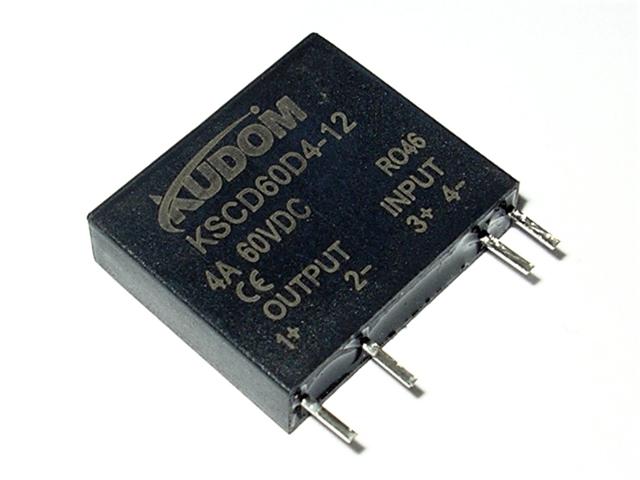

60VDC 4A Single Phase SIL Solid State Relay with 12VDC Control Voltage

Overview

Features

Specification

  • Input Circuit :
    • Control Voltage Range : 10~14VDC
    • Minimum Turn-On Voltage : 10VDC
    • Minimum Turn-Off Voltage : 1VDC
    • Maximum Input Current : 25mA
  • Output Circuit
    • Load Voltage Range : 0~60VDC
    • Transient Overvoltage : 66Vpk
    • Load Current Range : 0.02~4A
    • Maximum Surge Current [@10ms] : 20A
    • Maximum Turn-On Time : 3ms
    • Maximum Turn-Off Time : 3ms
  • Dielectric Strength : ≥2500Vrms [Input/Output]
  • Insulated Resistance(500VDC) : 1000MΩ
