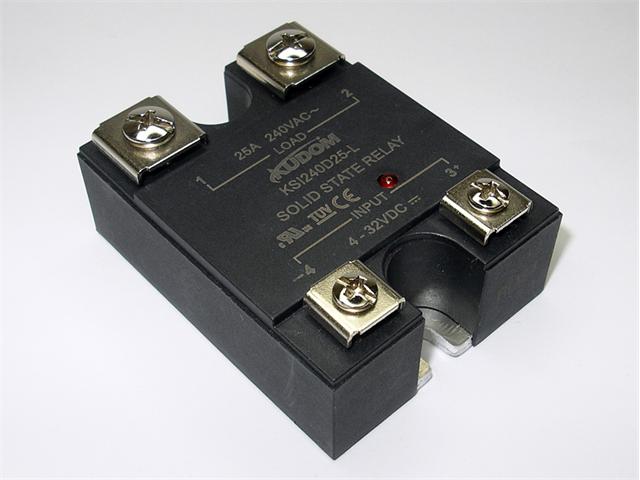

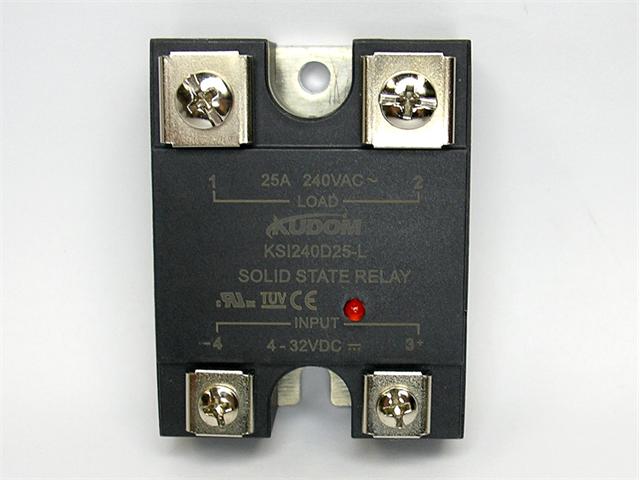

KSI240D25-L

SKU: KSI240D25-L

BRAND: Kudom


25A 240VAC Single Phase Solid State Relay with 4~32VDC Control Voltage, Zero Crossing Mode and LED Indication

Overview

Features

Specification



  • Input Circuit :
    • Control Voltage Range : 4~32VDC
    • Minimum Turn-On Voltage : 4VDC
    • Minimum Turn-Off Voltage : 1VDC
    • Maximum Input Current : 25mA
  • Output Circuit
    • Load Voltage Range : 48~280VAC
    • Maximum Turn-On Time : 1/2AC Cycle + 1ms
    • Maximum Turn-Off Time : 1/2AC Cycle + 1ms
    • Maximum Surge Current [@10ms] : 400A
    • Maximum I2t For Fusing [@10ms] : 900A2S
    • Transient Overvoltage : 600Vpk
  • Dielectric Strength : ≥4000Vrms [Input/Output], ≥2500Vrms [Ouput/Base]
