L-17114VW1C/DR

Name: L-17114VW1C/DR - Communica [Part No: L-17114VW1C/DR]
Brand: KingBright
SKU: L-17114VW1C/DR
Price: 6.65 ZAR
Availability: InStock

SKU: L-17114VW1C/DR

BRAND: KingBright

R 7.65_{(inc VAT)}
R 6.65_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Opto-electronics

Type: LED Lamps

Category: Dome LED Lamps

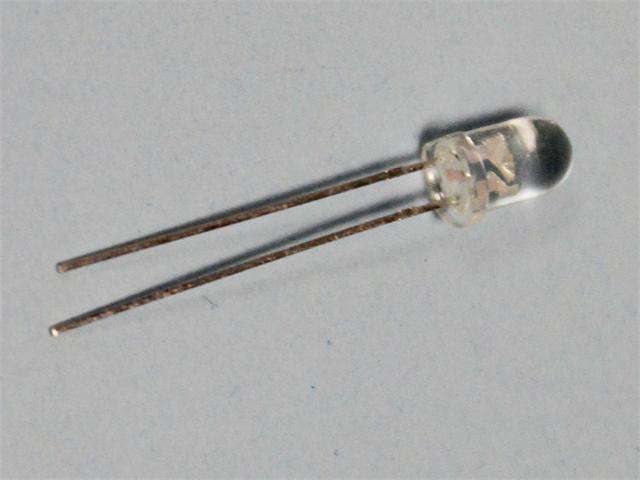

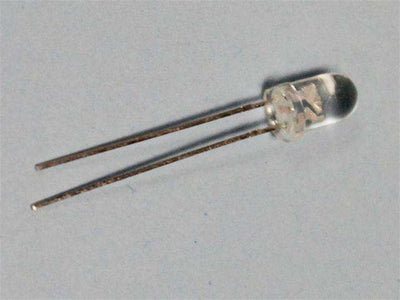

5mm Solid State Dome LED Lamp in Clear White with 22000mcd 30mA 120mW and 20 deg viewing angle

Overview

The source color devices are made with InGaN Light Emitting Diode.
Electrostatic discharge and power surge could damage the LEDs.
It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs.
All devices, equipments and machineries must be electrically grounded.

Features

Low power consumption.
Popular T-1 3/4 diameter package.
General purpose leads.
Reliable and rugged.
Long life - solid state reliability.
Available on tape and reel.
RoHS compliant.

Specification

Emitted Colour	White
Luminous Intensity	22000mcd
Size	5 mm
Viewing Angle	20°
Lens Type	Water Clear

Downloads

Datasheet Download

Illuminate your space with the L-17114VW1C/DR 5mm Solid State Dome LED Lamp. Featuring a powerful 22000mcd brightness and a 20° viewing angle, this reliable, low-power LED provides long-lasting performance for any project. Its clear white light and rugged design make it perfect for both general and specialized use, ensuring you enjoy energy efficiency and durability.
