LKT LINEA ACTUATR REMOTE 12-48V

SKU: LKT LINEA ACTUATR REMOTE 12-48V

BRAND: Communica


Remote for LKT DC Linear Actuators, 12 TO 48VDC

Remote for LKT DC Linear Actuators

Overview

This item is a wireless RF remote control and receiver kit, primarily used to control devices like DC  linear actuators, or other DC-powered applications.

The kit components include:

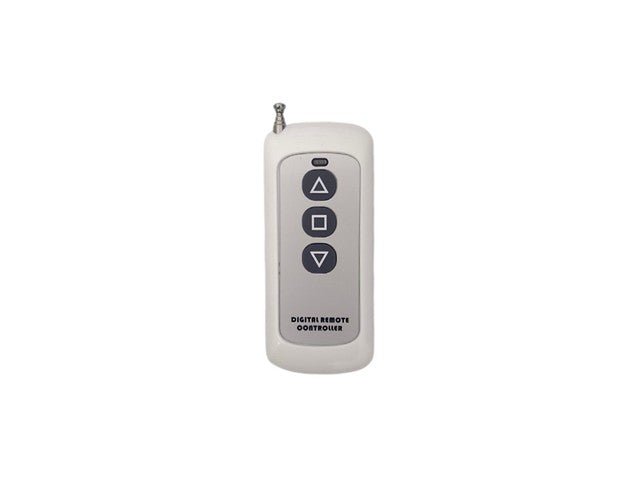

  • A two-button white remote control: It features simple geometric icons (triangle, square and an inverted triangle) for basic functions, like up, down and stop.

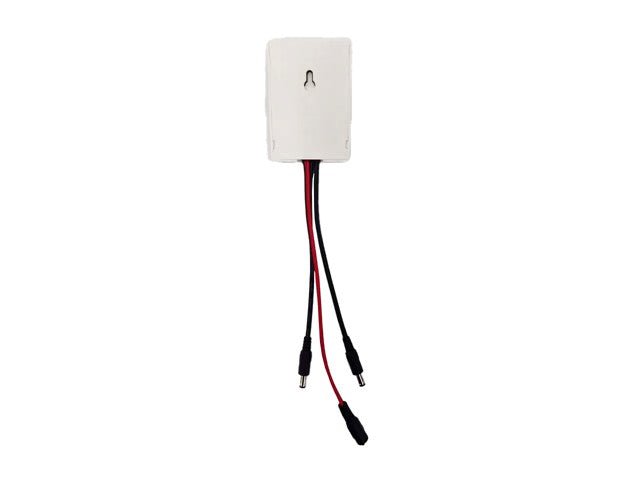

  • A white control module/receiver: This unit processes the RF signals from the remote and has multiple wired connections (typically 1x  input and 2 x output power jacks) to integrate with a power source and  target devices.

Specifications

  • Application range: Electric linear actuator DC brush motor
  • Operating temperature: -20~60℃
  • Housing Material: High-strength engineering plastic
  • Connection: 1-input, 2-output
  • Protection Rating: IP44
  • Switch Type: Two-way remote control switch
  • Receiver Power Supply: DC12-48V (voltage to be the same as the rated voltage of the linear actuator)
  • Battery Compatibility: No batteries required
  • Control distance: 100m
  • Control type: wired control
  • Working current: ≤10A
  • Load power: 0.01W

Additional Information

Device Remote
Type for LKT DC Linear Actuators
