M8-M04-T/RJ45-T-5.0-PUR-ETHERCAT

Name: M8-M04-T/RJ45-T-5.0-PUR-ETHERCAT - Communica [Part No: M8-M04-T/RJ45-T-5.0-PUR-ETHERCAT]
Brand: Wain
SKU: M8-M04-T/RJ45-T-5.0-PUR-ETHERCAT
Price: 678.15 ZAR
Availability: InStock

SKU: M8-M04-T/RJ45-T-5.0-PUR-ETHERCAT

BRAND: Wain

In Stock
R 779.87_{(inc VAT)}
R 678.15_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: CCTV Products & Accessories

Category: Selector Switch

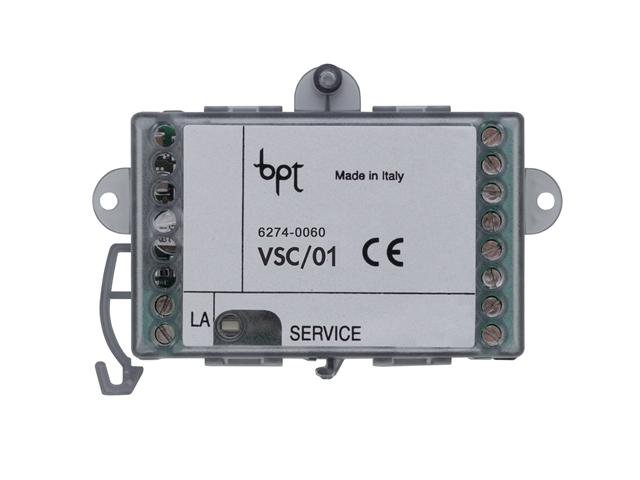

Selector for 4 External Standard CCTV Cameras

Overview

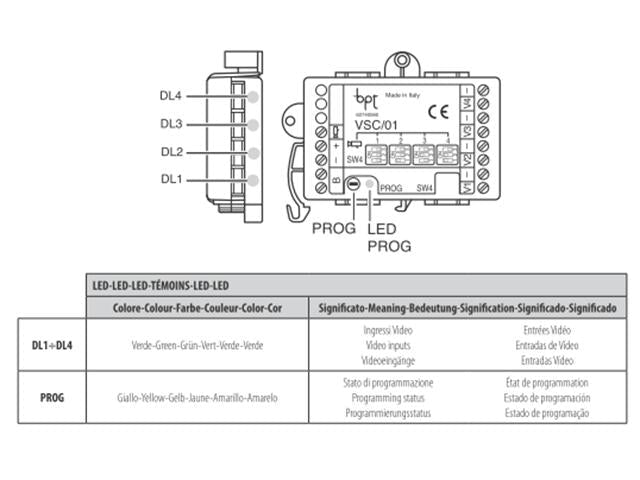

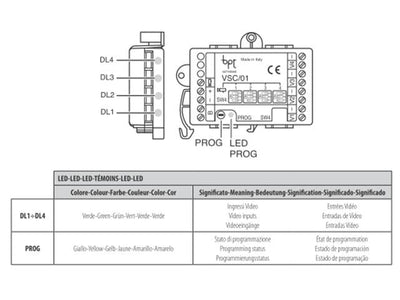

Manual cyclic selector for CCTV for X1 systems.Miniaturized housing for installation in junction boxes (dimensions 85.5x60x21 mm) or electrical control panels (EN50022), dimensions: 1 low-profile DIN module. Complete with 8 input terminals for video signal from 4 standard B/W colour video cameras (standard CCIR/EIA or PAL/NTSC) and three switches for programming of the number of video cameras connected. Key for access to programming mode. 7 LEDs indicating "video camera connected" and programming/data status. Power supply module 12V DC 0.09 A max.

Specifications

Measure Unit : NR

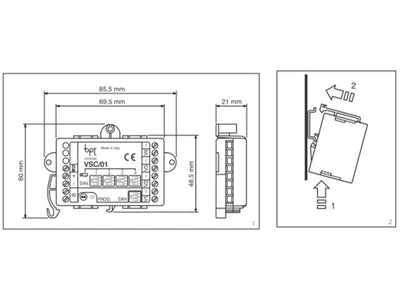

Length : 21 mm
Height : 85,5 mm
Width : 60 mm
Modulodin : 1
Weight : 0,071 Kg
Package Maximum Width : 100,00 mm
Package Minimum Width : 75,00 mm
Package Height : 40,00 mm
Package Weight : 0,071 Kg
Mounting Type : Guida Din
Minumun Working Temperature : 0°C
Max Working Temperature : +35°C

Downloads

Datasheet - BPT VSC-01

Additional Information

Group	POWER SUPPLIES
Device	CCTV Cameras Selector
