MAJ MT643

SKU: MAJ MT643

BRAND: Major Tech

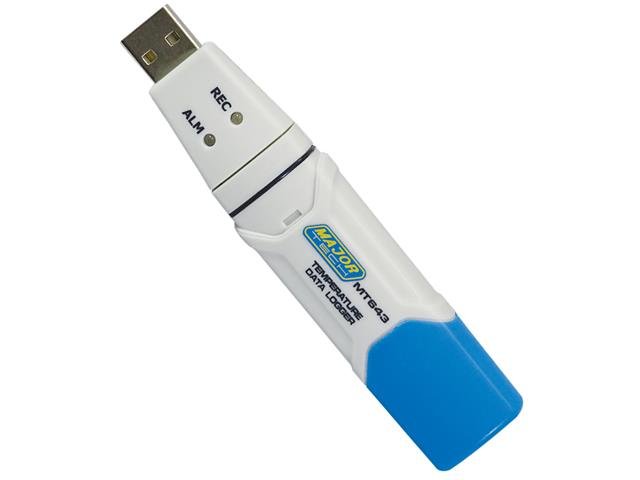

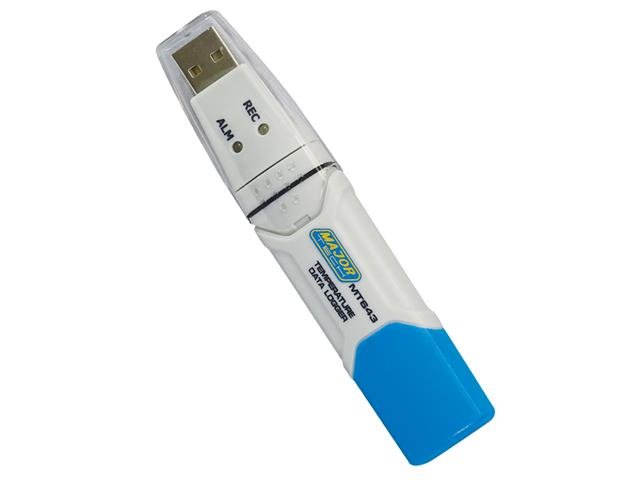

K-Type Temperature Data Logger

K-Type Temperature Data Logger

Overview

The MT643 is a K-Type Temperature Data Logger and measures and stores over 32,000 temperature readings from -200°C to +1370°C. With its precision calibrated internal temperature sensor, all the user has to do is place the logger in the field and leave it until the desired information has been recorded. The user can easily set up the logger and view downloaded data for analysis by plugging the data logger into a PC’s USB port and using the free software. Displays all status information through two LED’s, and where user defined minimum/maximum values are exceeded, and alarm LED will flash. Selectable measuring cycles can be set up from 1 second to 12 hours.

Features

  • K-Type -200° to 1370°C
  • 31 808 Data storage points
  • Battery life: more than 3 years
  • USB interface
  • Alarm display
  • Software
  • Selectable measuring cycle: 1s, 2s, 5s, 10s, 30s, 1m, 5m, 10m, 30m, 1hr, 2hr, 3hr, 6hr, 12hr

Accessories:

  • 3.6V Lithium Battery
  • K-Type Temperature Probe
  • Software
  • USB Built in

Specifications

Channels

Single

K Type

-200°C to 1372°C

K Type accuracy

±(1%)

K Type resolution

0.1°C

Temperature Ranges

°C, °F

Sample Rate

1,2,5,10s,1,5,10,30m,1,2,3,4,12hr

PC interface

USB connector to PC Port

Min Max Ave

Yes

Over-range indication

Yes

Digital Display

None

Data logging

31808 Readings

Low battery indication

Yes

Enclosure

Moulded

Power source

3.6V Lithium

Dimensions

101 x 24 x 21.5mm

Weight

172g

Downloads

Additional Information

Device Data Logger
Type K-Type | Temperature
