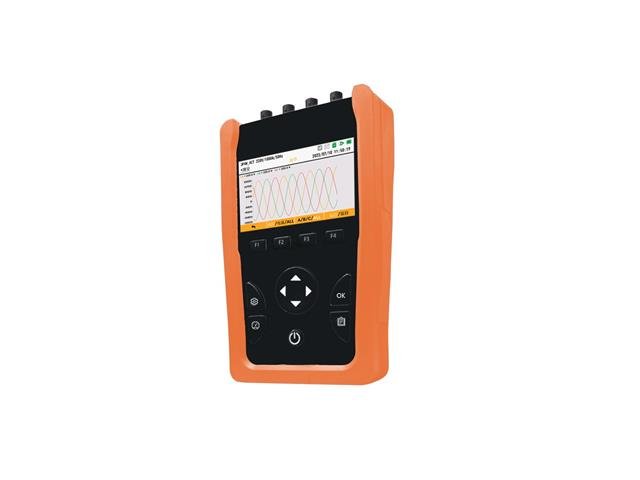

Handheld Multifunction Power Analyzer. Includes 4 X TRC-36 Flexible Rogwoski Coils (600A, 36mm Diameter), 5 X Voltage Clamp Adaptors, 5 X Magnetic Probes, Power Supply for Analyzer, RJ45 Cable & Aluminium Case for MI550
Handheld Multifunction Power Analyzer
Features
Mi550 handheld three phase power quality analyzer, externally connected with open type Rogowski coil or voltage type CT, it can realize none dismantling wire test, simplify test steps, save construction cost, and is more convenient for engineering test as well as the inspection and maintenance of distribution system.
Support systems of single-phase and three-phase. It can measure multiple electrical parameters such as current, voltage, power factor, power, energy, and power quality parameters including harmonic, unbalance degree, voltage swell and voltage dip, etc.
In addition to the measurement function, Mi550 is equipped with various records, such as waveform records and programmable interval measurement value records. To store and record data, it is internally embedded 32 GB memory card.
With standard configuration of RJ45 Ethernet communication interface, through standard Modbus TCP protocol, it is compatible with various configuration systems and could transmit the electrical parameters collected by the front end to the system data center in real time.
The MI550 Energy Analyzer is your ultimate handheld solution for precise power quality analysis. Equipped with advanced Rogowski coils and a 32 GB memory, it effortlessly measures key electrical parameters, streamlining maintenance and inspections. Save time and costs while ensuring optimal system performance with real-time data transmission via Ethernet. Perfect for both single-phase and three-phase systems, this multifunctional tool is essential for any engineering professional.
