MLS-GG 100/2,5 BLACK

Name: MLS-GG 100/2,5 BLACK - Communica [Part No: MLS-GG 100/2,5 BLACK]
Brand: SKS Hirschmann
SKU: MLS-GG 100/2,5 BLACK
Price: 200 ZAR
Availability: InStock

SKU: MLS-GG 100/2,5 BLACK

BRAND: SKS Hirschmann

In Stock
R 230.00_{(inc VAT)}
R 200.00_{(ex VAT)}

Collections: SKS Hirschmann, Test & Measurement

Type: Test Leads & Probes

Category: Test Leads

4mm PVC Safety Test Lead 2.5mm Striaght Shrd Plug to Straight. Shrd Plug Square.

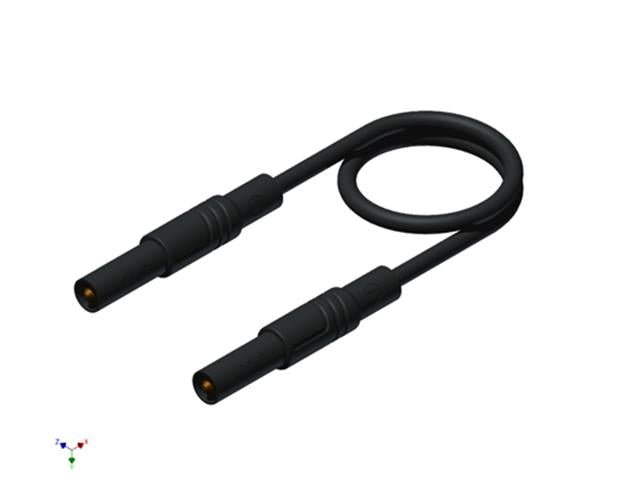

4mm PVC Safety Test Lead

Overview

Touch-proof measuring cable according to IEC 61010, both sides safety plug with 4mm diameter and straight outlet. Contact spring copper beryllium nickel-plated. Highly flexible, double insulated stranded wire, grip sleeve and cable are resistant to treading. Built-in color indicator to detect damage to the insulation.

Specifications

Rated Voltage (1) : AC / DC 1000V
Measurement Category According to IEC61010 : CAT III
Rated current (1) (observe derating curve) : 32 A
Material-pin : Nickel-Plated Brass
Housing Material : PA
Temperature Range According to IEC61010 (2) : -15°C to +70°C
Flammability Class According to UL 94 (only Applies to Housing Base Material) : V-2
Cable Length : 100 cm
Wire Gauge : 2.5 mm²
Cable Material : PVC
Contact Resistance : 12 mOhm
Standard : IEC 61010

Additional Information

Device	Test Lead
Type	PVC \| Safety
