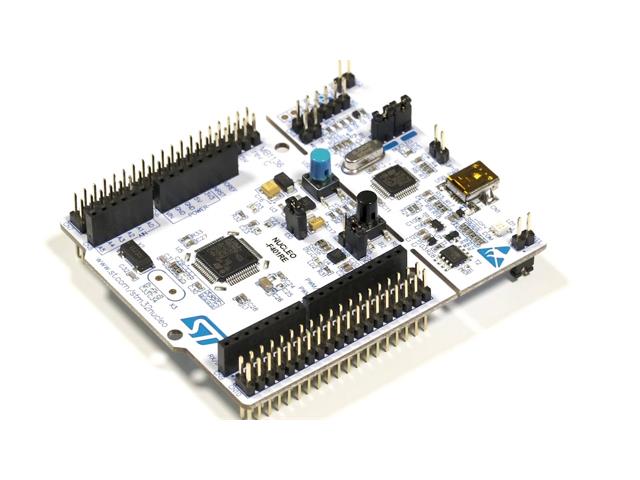

NUCLEO-F401RE

SKU: NUCLEO-F401RE

BRAND: STMicroelectronics


Developement Board STM32 Nucleo-64 , MCU 32-Bit LQFP64, ARM® Cortex®-M4 , USB Type-C®, Micro-B, or Mini-B connector for the ST-LINK , 32.768 kHz Crystal Oscillator , 24MHz or 48MHz HSE , External SMPS to generate Vcore logic supply , MIPI® Debug Connector

Developement Board STM32 Nucleo-64

Features

  • Common features
    • STM32 microcontroller in an LQFP64 or LQFP48 package
    • 1 user LED shared with ARDUINO®
    • 1 user and 1 reset push-buttons
    • 32.768 kHz crystal oscillator
    • Board connectors:
      • ARDUINO® Uno V3 expansion connector
      • ST morpho extension pin headers for full access to all STM32 I/Os
    • Flexible power-supply options: ST-LINK USB VBUS or external sources
    • On-board ST-LINK debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
    • Comprehensive free software libraries and examples available with the STM32Cube MCU Package
    • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
  • Board-specific features
    • External SMPS to generate Vcore logic supply
    • 24 MHz or 48 MHz HSE
    • User USB Device full speed, or USB SNK/UFP full speed
    • Cryptography
    • Board connectors:
      • External SMPS experimentation dedicated connector
      • USB Type-C®, Micro-B, or Mini-B connector for the ST-LINK
      • USB Type-C® user connector
      • MIPI® debug connector

Downloads

Additional Information

Device Developement Board
Type STM32 | Nucleo-64
