PDX MG5050R15 (868)

SKU: PDX MG5050R15 (868)

BRAND: Paradox


MG5050 WIRELESS PANEL W REM15 868MHz

Overview

Features

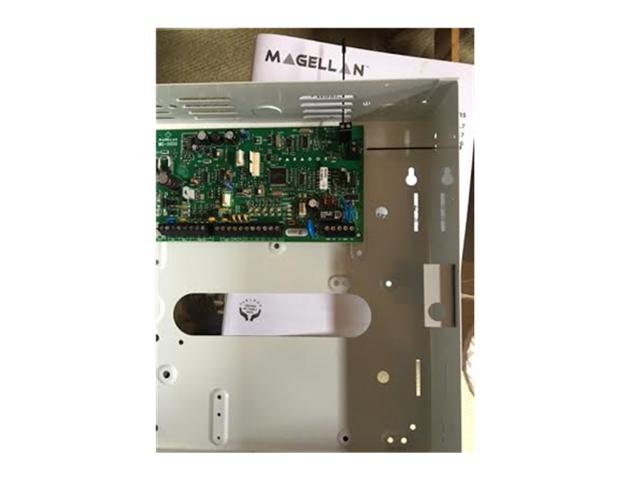

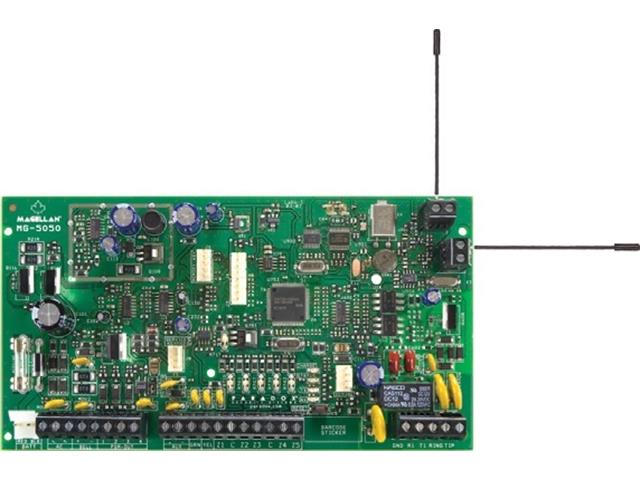

MG5050: Magellan 5 to 32-Zone Wireless Transceiver Control Panel

  • Supports StayD
  • Built-in transceiver (433 MHz)
  • 32 zones (any of which can be wireless) and 2 partitions
  • 32 users and 32 remote controls (1 per user)
  • 4-wire communication bus (connect up to 15 keypads)
  • 5 on-board hardwired zone inputs (4 with ATZ)
  • Supports REM3, 8 K32RFs/K37s, 4 SR150s (see page 36), and 2 RPT1s (see page 40)
  • Supports reporting (PCS series), IP (IP100), and voice modules (VDMP3)
  • Supports 16 PGMs (any of which can be wireless) and 4 on-board PGMs
  • In-field firmware upgradable via 307USB
  • Menu-driven programming for the Installer, Master, and Maintenance codes
  • Phone #s: 3 monitoring, 5 for personal dialing, and 1 for pager
  • Patented 2-optocoupler dialer circuit – the most reliable dialer in the industry
  • Push-button power reset
  • RF Jamming Supervision
  • 9.6K baud communication with WinLoad
  • 256 events buffered
  • Fits in a 20 x 25.5 x 7.6 cm (8 x 10 x 3 in.) metal box
