PRV ABT-60

SKU: PRV ABT-60

BRAND: Paravision

Sold Out
R 799.25_{(inc VAT)}
R 695.00_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: IR Beams

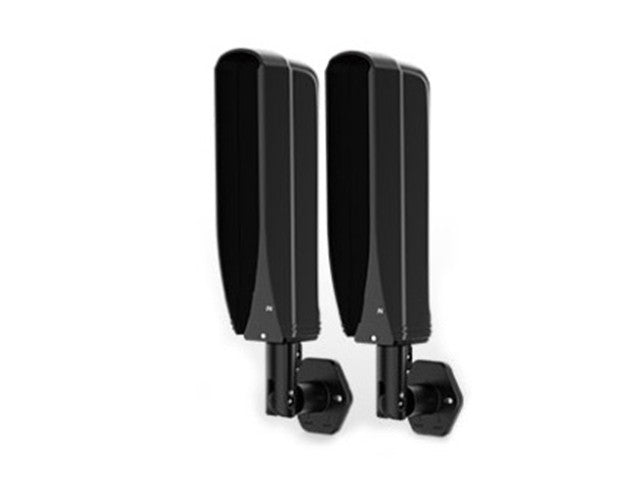

Paravision Infrared Perimeter 2 Beam - 60m (PA2810)

Infrared Perimeter 2 Beam

Specifications

Model : ABT-60
Detection Range Outdoor : 60m
Detection Range Indoor : 1800m
Detection Method : Simultaneous Interuption of 2 Infrared Beams
Frequencies : 4 Different Channels Selectable
Interruption Time : 50ms, 100ms, 300ms, 700ms (selectable)
Power Supply : DC/AC 12-24V
Current Consumption : 75mA max
Alarm Period : ≥1.5sec
Alarm Output : 1C relay output (DC/AC30V, 1.0A max)
Tamper Switch : NC, opens when cover removed
Operating Temperature ; -25°C to +55°C
Environment Humidity : 95% max
Alignment Angle : Horizontal 180°(±90°), Vertical 20°(±10°)
Mounting : Outoor or Indoor, Wall or Pole
Protection Degree : IP65
Material : PC engineering plastic
Dimension (L*W*H) : 212*80*75mm

Downloads

Brochure - PRV ABT-60

Additional Information

Device	2 Beam
Type	Infrared \| Perimeter
