R18-29A3 GREEN

SKU: R18-29A3 GREEN

BRAND: Salecom

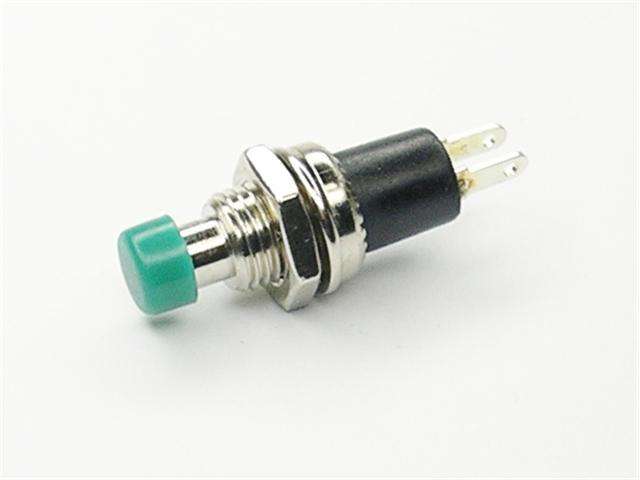

Miniature Push Button Switch • Momentary • Form : SPST-0-(1) • 3A-125 VAC • Solder-Lug • Green-Button • Round Actuator • PTM

Overview

Features

Specification



  • Rating: 3A 125VAC
  • Contact Resistance: 30mO max.
  • Insulation Resistance: DC 500V 100 MO min.
  • Dielectric Strength: AC 1000V 1 minute
  • Electrical Life: 30,000 cycles min
  • Mechanical Life: 50,000 cycles min
  • Terminal Material: Copper alloy, silver or gold plated

Additional Information:

Transition Style Momentary
Actuator Style Round
Termination Solder-Lug
Switch Circuit SPST-0-(1)
Electrical Rating 3A-125 VAC
No.of Poles/Pins 2Pin
Color Green-Button

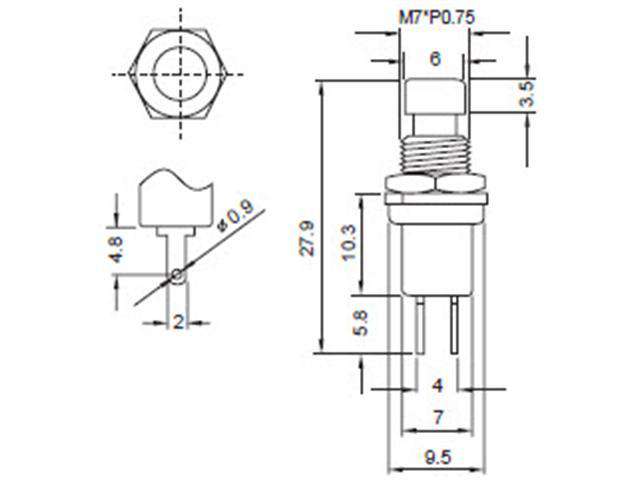

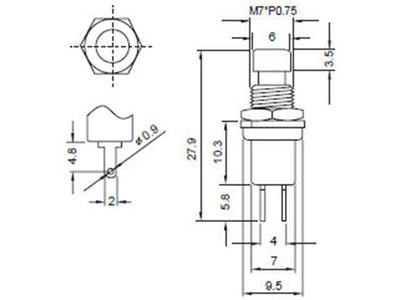

Size Ø9.5mm
