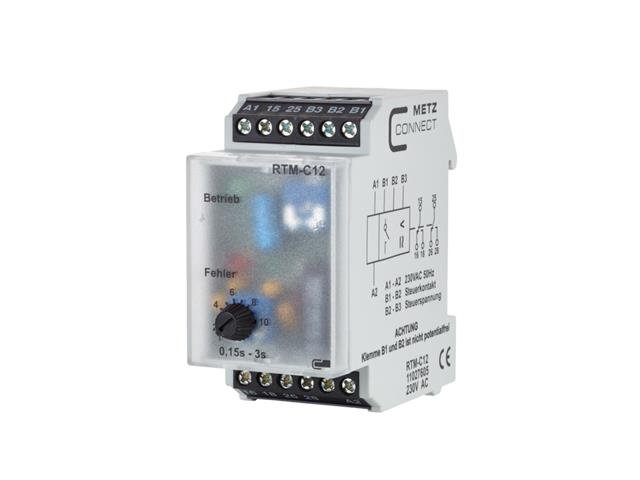

Timer Relay 0,15S-3,0S for Pulse Prolongation. When Control Contact Closed Min. 5 ms, Relay Activates / Releases After Adjusted Pulse Time Has Lapsed. Operating 230VAC @ 15mA / Output 8A @ 250VAC/VDC Contacts Max.
Timer Relay 0,15S-3,0S for Pulse Prolongation.
Overview

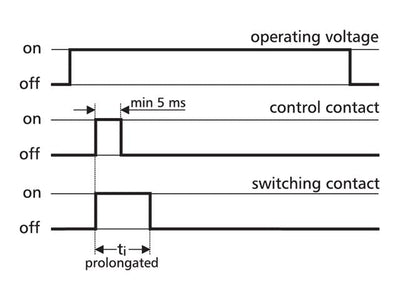

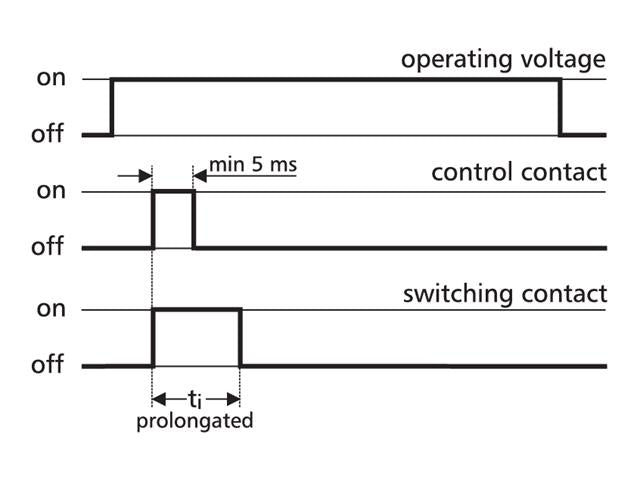

The timer relay is used for pulse prolongation. When the control contact is closed min. 5 ms, the relay is activated and releases after the adjusted pulse time has lapsed. Further control pulses during the pulse time do not have any effect.
Adjustable pulse length: 0.15 to 3 s
Connection with screw-type terminals
Specifications
Operating voltage : 230 V AC
Current consumption max. : less than or equal to 15 mA
Continuous current max. : 8 A

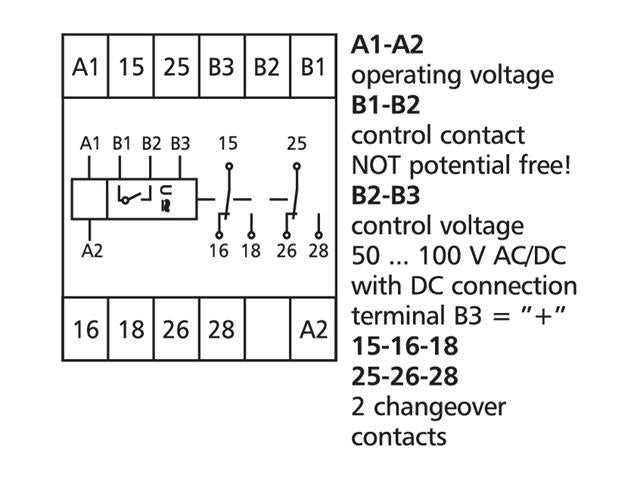

Output / contact : 2 changeover contacts (DPDT)
Output / contact material : AgNi90/10 gold plated
Response time typical : 20 ms
Release time typical : 20 ms
Recovery time : greater than or equal to 20 ms
Minimum switch-on duration : greater than or equal to 5 ms
Enhance your automation projects with the RTM-C12 Timer Relay, designed for precise pulse prolongation from 0.15 to 3 seconds. Operating at 230 V AC, this reliable relay ensures efficient control, with a robust output of 8A at 250 VAC/VDC. Its screw-type terminals make installation easy, making it the perfect choice for reliable and effective timing solutions.
