RTM-C12, 24 V AC/DC (11027613)

Name: RTM-C12, 24 V AC/DC (11027613) - Communica [Part No: RTM-C12, 24 V AC/DC (11027613)]
Brand: Metz Connect
SKU: RTM-C12, 24 V AC/DC (11027613)
Price: 2235 ZAR
Availability: InStock

SKU: RTM-C12, 24 V AC/DC (11027613)

BRAND: Metz Connect

In Stock
R 2,570.25_{(inc VAT)}
R 2,235.00_{(ex VAT)}

Collections: Electromechanical

Type: Industrial Automation

Category: Timer Relay

Timer Relay 0,15S-3,0S for Pulse Prolongation. When Control Contact Closed Min. 5 ms, Relay Activates / Releases After Adjusted Pulse Time Has Lapsed. Operating 24VAC/VDC @ 15mA / Output 8A @ 250VAC/VDC Contacts Max.

Timer Relay 0,15S-3,0S for Pulse Prolongation

Feature(s)

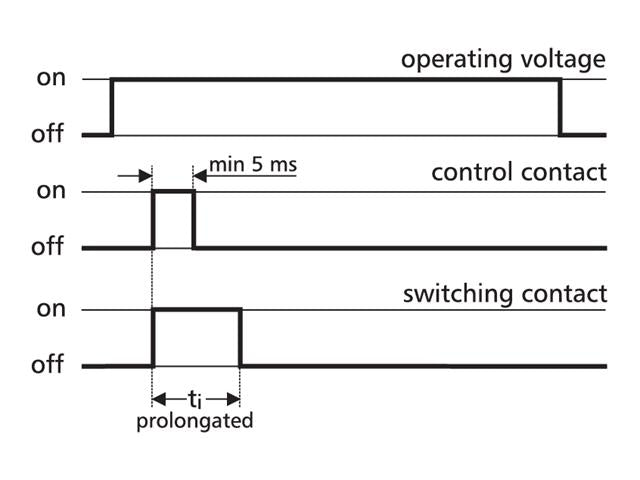

The timer relay is used for pulse prolongation. When the control contact is closed min. 5 ms, the relay is activated and releases after the adjusted pulse time has lapsed. Further control pulses during the pulse time do not have any effect.

Adjustable pulse length: 0.15 to 3 s
Connection with screw-type terminals

Specifications

Operating voltage : 24 V AC/DC
Current consumption max. : less than or equal to 15 mA
Continuous current max. : 8 A

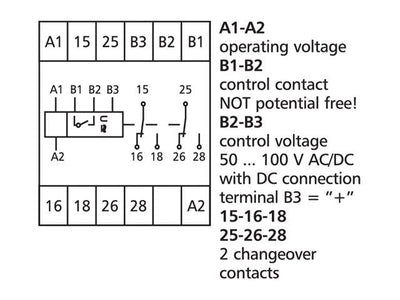

Output / contact : 2 changeover contacts (DPDT)
Output / contact material : AgNi90/10 gold plated
Response time typical : 20 ms
Release time typical : 20 ms
Recovery time : greater than or equal to 20 ms
Minimum switch-on duration : greater than or equal to 5 ms
Mechanical endurance : 3 x 107
Electrical endurance : 1 x 10⁵
Wire cross section solid wire : 2.5 mm² / AWG 14

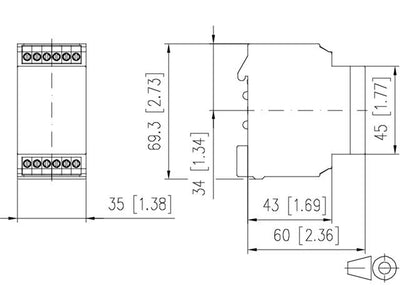

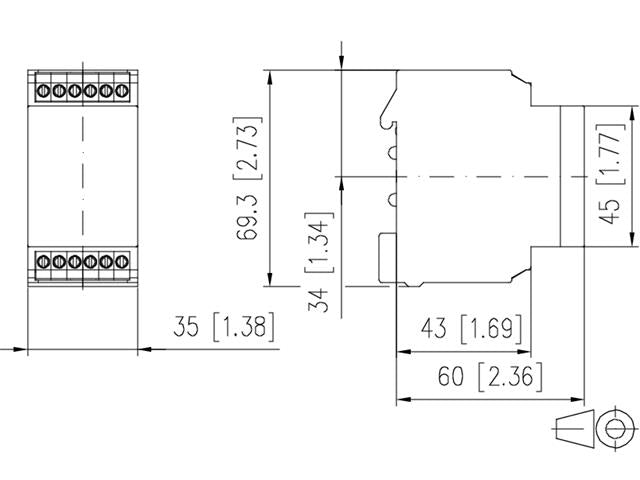

Dimensions (W x H x D) : 35 x 69.3 x 60 mm
Weight : 100 g
Operating temperature range : -10 °C to +55 °C
Storage temperature range : -25 °C to +70 °C
Ingress protection for housing / terminal block : IP40 / IP20

Additional Information

Device	Timer Relay
Type	for Pulse Prolongation
