SIGLENT Digital Storage Oscilloscope 100MHz 2CH, 10.1” TFT LCD Touch Screen, Res:1024X600, 2 GSa/s (Interleaving Mode), 1 GSa/s (Non-Interleaving Mode), External Trigger, USB2.0 HOSTx2, USB2.0 Device, LAN, AUX O/P (TRIG OUT,PASS/FAIL)
Digital Storage Oscilloscope

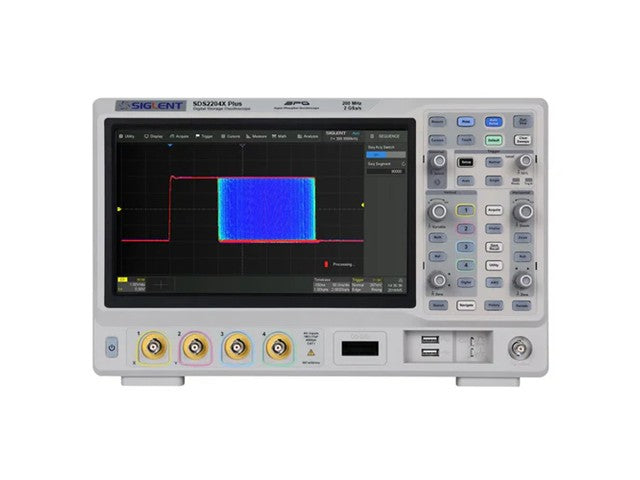

Overview

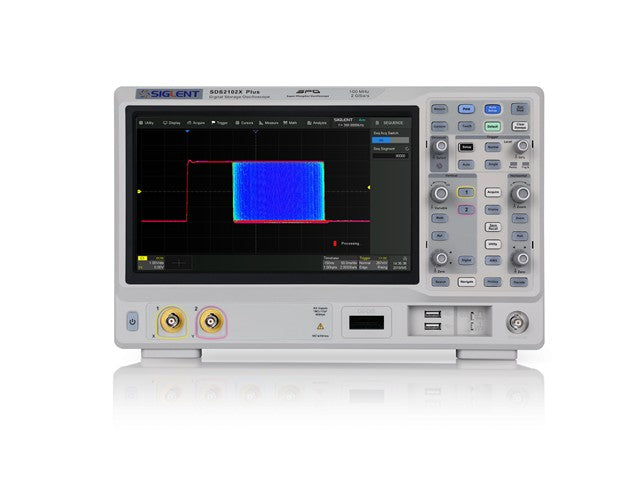

The SDS2102X PLUS is a 100MHz, 2CH Super Phosphor Oscilloscope and has a maximum sampling rate of 2GSa/s with a standard record length of 200Mpts. Siglent Technologies proudly presents the 3rd generation of their 2000 series of oscilloscopes. Five years after the introduction of the very successful SDS2000X, Siglent has continued to implement customer feedback and now present the new SDS2000X Plus Series. Designed to impress, the X Plus has a feature-rich standard configuration and options that make it a powerful and flexible tool for all general purpose tasks in the lab.

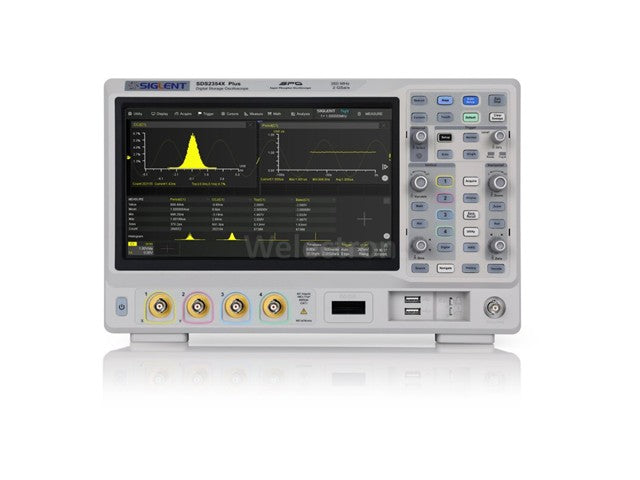

Features
- 350 MHz, 200 MHz, 100 MHz models with real-time sample rate up to 2 GSa/s. A 500 MHz bandwidth upgrade option is available for 350 MHz models.
- SPO technology
- Waveform capture rates up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode)
- Supports 256-level intensity grading and color temperature display modes
- Record length up to 200 Mpts/ch, 400 Mpts in total for all 4 channels
- Digital trigger system
- Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern and Video (HDTV supported). Trigger zone helps to simplify advanced triggering
- Serial bus triggering and decoder, supports I2C, SPI, UART, CAN, LIN (Standard) and CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, and Manchester (optional) protocols
- Low background noise, features 0.5 mV/div to 10 V/div voltage scales
- 10-bit mode provides higher resolution and lower noise
- Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 90,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
- History waveform record (History) function for up to 90,000 triggered waveforms (frames)
- Automatic measurement function on 50+ parameters, supports statistics with histogram and trend
- Two Math traces, support 2 Mpts FFT, +, -, x, ÷, d/dt, ∫dt, √, average, ERES, and formula editor
- Abundant data processing and analysis functions such as Search, Navigate, Mask Test, Bode plot, Power Analysis (optional) and Counter
- 16 digital channels
- Built-in 50 MHz waveform generator (optional)
- Large 10.1” TFT-LCD display with 1024×600 resolution; Capacitive touch screen supports multi-touch gestures
- Multiple interfaces: USB Host, USB Device (USBTMC), LAN（VXI-11/Telnet/Socket）, Pass/Fail, Trigger Out
- Built-in web server supports remote control by the LAN port using a web browser; Supports SCPI remote control commands
Specifications
- Bandwidth: 100MHz
- Sample Rate (Max.): 2GSa/s (Interleaving Mode), 1GSa/s (Non-Interleaving Mode)
- Memory Depth (Max.): 200Mpts/Ch (Interleaving Mode), 100Mpts/Ch (Non-Interleaving Mode)
- Waveform Capture Rate (Max.): 120,000 wfms/s (Normal Mode), 500,000 wfms/s (Sequence Mode)
- Vertical Resolution: 8-bit. 10-bit mode (with typical 100MHz bandwidth)
- Trigger Type: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video and Serial
- Serial Trigger and Decode: Standard = I2C, SPI, UART, CAN, LIN. Optional = CAN FD, FlexRay, I2S, MIL-STD-1553B
- Measurements: More than 50 parameters, supports statistics with histogram and trend.
- Math: 2 Traces, 2Mpts FFT, +, -, x, ÷, d/dt, ∫dt, √, average, ERES, and formula editor
- Data Processing and Analysis Tools: Search, Navigate, History, Mask test, Bode plot, Power Analysis (Optional) and Counter
- Digital Channel (Optional): 16-Channel; Maximum sample rate up to 500MSa/s; record length up to 50Mpts/Ch
- Waveform Generator (Optional): Single Channel, frequency up to 50MHz, 125MSa/s sample rate, 16kpts waveform memory

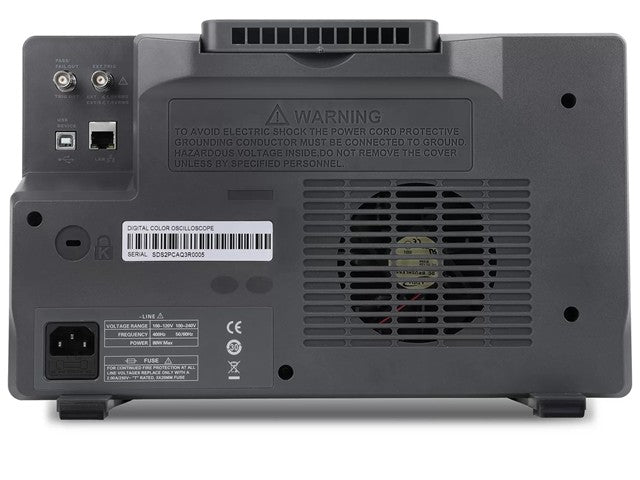

- Interface: USB 2.0 Host x2, USB 2.0 Device, LAN, External trigger, Auxillary output (TRIG OUT, PASS/FAIL)
- Probe (Standard): PP215, 200MHz, 1 probe supplied for each channel
- Display: 10.1″ TFT-LCD with capacitive touch screen (1024×600)
- Bandwidth: 100MHz
- Sample Rate (Max.): 2GSa/s (Interleaving Mode), 1GSa/s (Non-Interleaving Mode)
- Memory Depth (Max.): 200Mpts/Ch (Interleaving Mode), 100Mpts/Ch (Non-Interleaving Mode)
- Waveform Capture Rate (Max.): 120,000 wfms/s (Normal Mode), 500,000 wfms/s (Sequence Mode)
- Vertical Resolution: 8-bit. 10-bit mode (with typical 100MHz bandwidth)
- Trigger Type: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video and Serial
- Serial Trigger and Decode: Standard = I2C, SPI, UART, CAN, LIN. Optional = CAN FD, FlexRay, I2S, MIL-STD-1553B
- Measurements: More than 50 parameters, supports statistics with histogram and trend.
- Math: 2 Traces, 2Mpts FFT, +, -, x, ÷, d/dt, ∫dt, √, average, ERES, and formula editor
- Data Processing and Analysis Tools: Search, Navigate, History, Mask test, Bode plot, Power Analysis (Optional) and Counter
- Digital Channel (Optional): 16-Channel; Maximum sample rate up to 500MSa/s; record length up to 50Mpts/Ch
- Waveform Generator (Optional): Single Channel, frequency up to 50MHz, 125MSa/s sample rate, 16kpts waveform memory
- Interface: USB 2.0 Host x2, USB 2.0 Device, LAN, External trigger, Auxillary output (TRIG OUT, PASS/FAIL)
- Probe (Standard): PP215, 200MHz, 1 probe supplied for each channel
- Display: 10.1″ TFT-LCD with capacitive touch screen (1024×600)
Downloads
Additional Information
| Device |
Oscilloscope |
| Type |
Digital Storage |
