SM-05S-00D0

SKU: SM-05S-00D0

BRAND: Communica

In Stock
R 79.93_{(inc VAT)}
R 69.50_{(ex VAT)}

Collections: Electromechanical

Category: Micro Switches

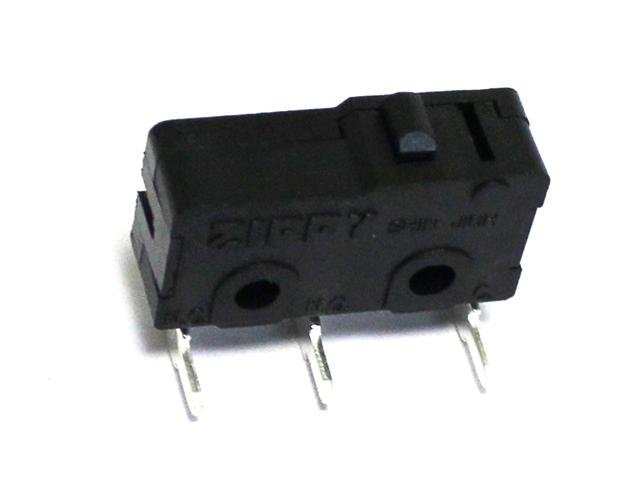

Micro Switch with no Lever PCB Right Angle (Orientation "D") 5A 125/250VAC

Micro Switch with no Lever PCB Right Angle

Feature(s)

Contact Resistance (initial) : Max. 300mΩ
Insulation Resistance (at 500VDC/minute) : Min 100MΩ
Dielectric Strength : AC 1000VAC (50~60Hz)
Storage Temperature Range : -25°C to 85°C
Storage Humidity : @ 40°C, Max. 85% R.H
Vibration : 10~55Hz, displacement 0.75mm (p-p)
Electrical Service Life : 0.1A - Min.1,000,000 operations
Other ratings - Min 6,000 operations
Electrical Operating Frequency : 0.1A - 120 operations per minute
Other ratings - 10~30 operations per minute
Mechanical Service Life : Min 10,000,000 operations
Mechanical Operating Frequency : 120 operations per minute

Specifications

Transition Style : Momentary
Actuator Style : No-Lever

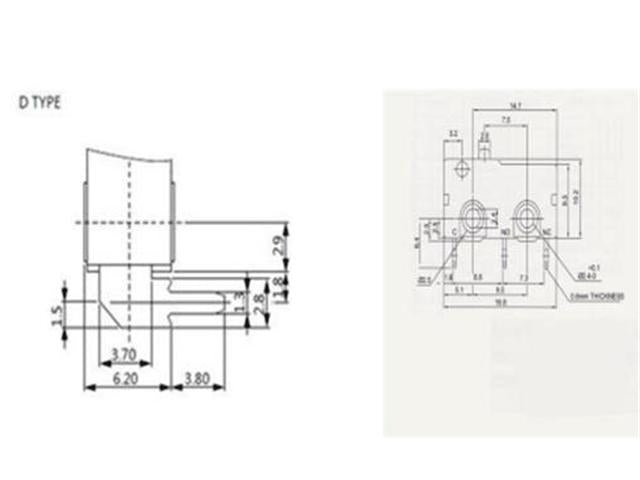

Termination : PCB-Right Angle
Switch Circuit : 1C-SPDT(CO)
Electrical Rating : 5A-250VAC
No.of Poles/Pins : 3Pin

Additional Information

Device	Micro Switch
Type	PCB \| Right Angle
Highlights	with no Lever
