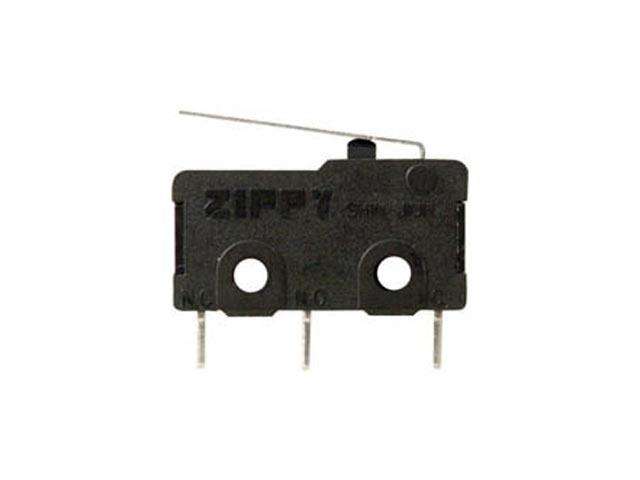

SM-05S-01P

SKU: SM-05S-01P

BRAND: Communica


Sub-Miniature Micro Switch • Form : 1C-SPDT(CO) • 5A-250VAC • PCB-Terminal • Standard-Lever Actuator

Overview

Features



  • Contact Resistance (initial) : Max. 300mΩ
  • Insulation Resistance (at 500VDC/minute) : Min 100MΩ
  • Dielectric Strength : AC 1000VAC (50~60Hz)
  • Storage Temperature Range : -25°C to 85°C
  • Storage Humidity : @ 40°C, Max. 85% R.H
  • Vibration : 10~55Hz, displacement 0.75mm (p-p)
  • Electrical Service Life : 0.1A - Min.1,000,000 operations
  • Other ratings - Min 6,000 operations
  • Electrical Operating Frequency : 0.1A - 120 operations per minute
  • Other ratings - 10~30 operations per minute
  • Mechanical Service Life : Min 10,000,000 operations
  • Mechanical Operating Frequency : 120 operations per minute

Specification



Transition Style Momentary
Actuator Style Standard-Lever
Termination PCB-Terminal
Switch Circuit 1C-SPDT(CO)
Electrical Rating 5A-250VAC
No.of Poles/Pins 3Pin
