STP10NK80Z

Name: STP10NK80Z - Communica [Part No: STP10NK80Z]
Brand: IOR
SKU: STP10NK80Z
Price: 62.50 ZAR
Availability: OutOfStock

SKU: STP10NK80Z

BRAND: IOR

Sold Out
R 71.88_{(inc VAT)}
R 62.50_{(ex VAT)}

Collections: Semiconductors

Type: Transistors

Category: N Channel Mosfet Transistor

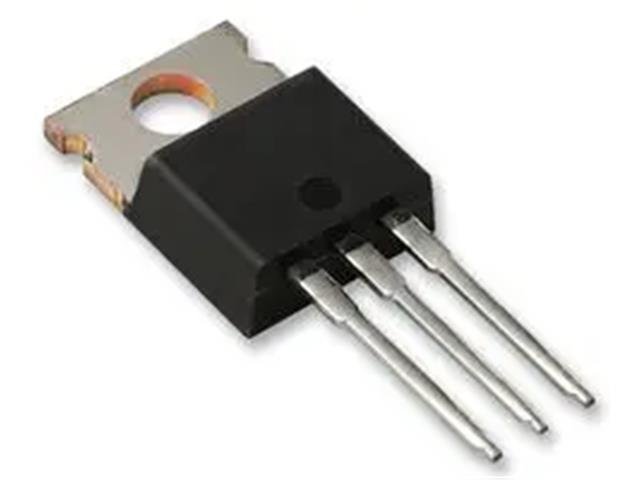

FET N-Channel 800V 9A 160W 900MR TO220

FET N-Channel 800V 9A 160W

Specifications

Channel Type: N Channel
Transistor Polarity: N Channel
Continuous Drain Current Id: 9A
Drain Source Voltage Vds: 800V
Drain Source On State Resistance: 0.78ohm
On Resistance Rds(on): 0.78ohm
Rds(on) Test Voltage: 10V
Transistor Mounting: Through Hole
Gate Source Threshold Voltage Max: 3.75V
Power Dissipation Pd: 160W
Transistor Case Style: TO-220
Power Dissipation: 160W
No. of Pins: 3Pins
Operating Temperature Max: 150°C

Downloads

Datasheet - STP10NK80Z

Additional Information

Device

Transistor

The STP10NK80Z N-Channel MOSFET delivers exceptional performance with 800V, 9A, and 160W capabilities, making it ideal for high-voltage applications. Its low on-resistance of 0.78 ohms ensures efficient power management, while the TO-220 package allows for easy installation. Upgrade your projects with this reliable transistor that excels in thermal performance and versatility.
