SW-05S-025A-A5

Name: SW-05S-025A-A5 - Communica [Part No: SW-05S-025A-A5]
Brand: Communica
SKU: SW-05S-025A-A5
Price: 115.20 ZAR
Availability: InStock

SKU: SW-05S-025A-A5

BRAND: Communica

R 132.48_{(inc VAT)}
R 115.20_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: Micro Switches

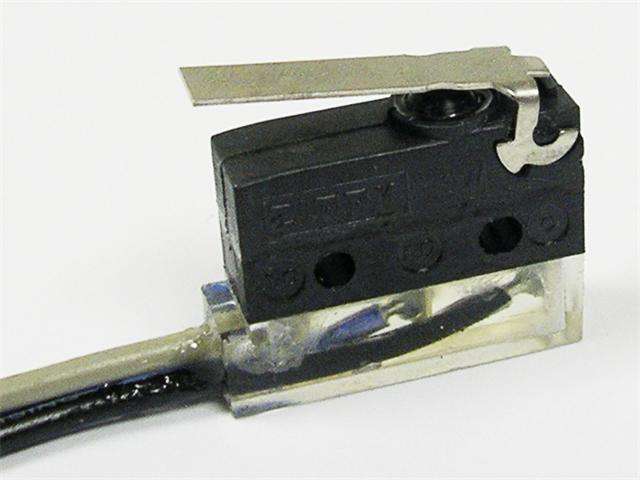

Sub-Miniature Sealed Micro Switch • Form : 1C-SPDT(CO) • 5A-250VAC • 90-Deg-Leads • Long-Lever Actuator

Overview

Features

Contact Resistance (initial) : Max. 100mΩ
Insulation Resistance (at 500VDC/minute) : Min 100MΩ
Dielectric Strength : AC 1000VAC (50~60Hz)
Storage Temperature Range : -25°C to 85°C
Storage Humidity : @ 40°C, Max. 85% R.H
Vibration : 10~55Hz, displacement 0.75mm (p-p)
Electrical Service Life : Min.10,000 operations
Electrical Operating Frequency : 10~30 operations per minute
Mechanical Service Life : Min 2,000,000 operations
Mechanical Operating Frequency : 120 operations per minute

Specification

Transition Style	Momentary
Actuator Style	Long-Lever
Termination	90-Deg-Leads
Switch Circuit	1C-SPDT(CO)
Electrical Rating	5A-250VAC
No.of Poles/Pins	3Pin

Discover the SW-05S-025A-A5 Sub-Miniature Sealed Micro Switch, designed for durability and precision with a long-lever actuator. Rated for 5A-250VAC, it ensures reliable performance with a lifespan of over 10,000 operations. Perfect for your electronic projects, this micro switch offers exceptional contact resistance and operates seamlessly in diverse environments. Upgrade your devices with this robust switch for unmatched reliability and efficiency.
