TAKEX AV-100E

Name: TAKEX AV-100E - Communica [Part No: TAKEX AV-100E]
Brand: Takex
SKU: TAKEX AV-100E
Price: 2826.09 ZAR
Availability: OutOfStock

SKU: TAKEX AV-100E

BRAND: Takex

Sold Out
R 3,250.00_{(inc VAT)}
R 2,826.09_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: Voice Speaker

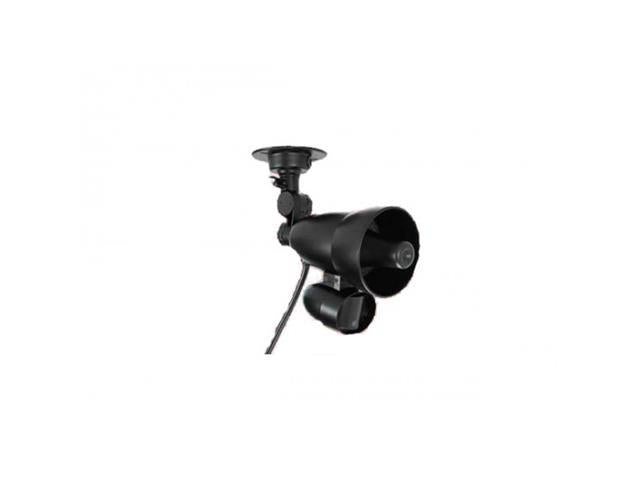

The AV-100E is a horn-type speaker with built-in microphone. A N/O input is required to trigger the playback of your recorded message.

Tweeter

Specifications

Supply voltage: 12VDC (non-polarity)
Current consumption: 20mA or less at standby, 500mA or less at activation (max. volume)
Alarm input (to trigger): Dry contact N/O, Contact capacity: 10mA or more
Sound synthesis: ADM method
Record method: Built-in condenser microphone
Record/playback time: 8 seconds, Sound memory capacity: 256kb S-RAM
Memory back-up: More than 20 days with non-electrified conditions (temp: 25C, initial 30min charge required)
Sound output operation: One-shot 8 sec. playback after detection (no re-trigger action during playback)
Sound output power: Max 2W over 100dB (1m ahead) at correct record level
Volume adjustment: Continuously variable from 0 to max.
Indication LED: Record: Level indicator function, Playback: LED on during playback
Ambient temperature range: -20C to +50C (-4F to +122F) no dew, no frost
Installation: Indoor / outdoor (rainproof), screw on flange
Weight: 1050g (37oz)

Downloads

Datasheet - TAKEX AV-100E

Additional Information

Device

Horn

Experience powerful sound with the TAKEX AV-100E horn speaker, designed for both indoor and outdoor use. Featuring a built-in microphone and 8 seconds of playback, it ensures your message is heard loud and clear. With easy installation and robust performance in any weather, this reliable speaker is perfect for alarms and announcements. Elevate your audio experience with the TAKEX AV-100E today!
