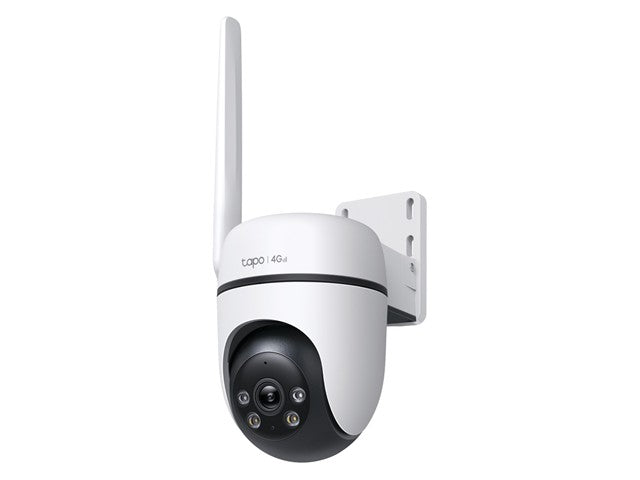

TP-LINK Tapo Outdoor PAN/Tilt 4G LTE Camera 3.16mm LENS, 850nm IR LED (98ft /29.8m), Colour Night Vision, 3D DNR/BLC, WDR, Built-In Mic & SPKR, 1×100 Mbps RJ45 Port, Micro SD Card Slot (MAX512GB), PSU12V / IEEE 802.3af/at PoE, 430g, IP66
Tapo Outdoor PAN/Tilt 4G LTE Camera
Feature(s)
- No Wi-Fi, No Limit: Connects through 4G LTE networks, ideal for places where constant Wi-Fi is not available.
- 360° All-Round Protection: Provides 360° horizontal & 130° vertical viewing range, eliminating blind spots.
- Free AI Detection: Smart AI identifies people, pets, and vehicles, sending instant notifications through the Tapo app.
- 1080P Full HD: Reveals sharp images and vivid details with 1920 × 1080 pixels.
- Color Night Vision: Captures vibrant images with built-in spotlights.
- IP66 Weatherproof: Works well in rain, dust, and heat, offering excellent waterproof and dustproof performance for outdoor scenarios.
- Sound and Light Alarm: Craft your own audio alarm to deter unwelcome intruders and tailor the intensity of the dual spotlights.
- Local and Cloud Storage: Save all your important moments to a microSD card (up to 512GB) or subscribe to Tapo Care for cloud service.
- Dual Mode Flexibility with 4G or PoE: Power your camera with a DC adapter or Ethernet cable featuring PoE technology.
Specifications
|
CAMERA
|
| Image Sensor |
1/3” CMOS Sensor |
| Lens |
Focal Length: 3.16 mm
Aperture: F1.6
Field of View: 116.7° (Diagonal), 99.7°(Horizontal), 53.8°(Vertical)
|
| Night Vision |
850 nm IR LED (98 ft / 29.9 m), color night vision |
| Interface & Button |
1× DC Port
1× Ethernet Port, PoE
1× RESET Button
1× MicroSD Card Slot (Up to 512GB)
1× Nano-SIM Card Slot |
| Pan/Tilt Range |
Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 85°(139° Tilt Coverage) |
|
VIDEO & AUDIO
|
| Maximum Resolution |
1920 × 1080 px |
| Frame Rate |
15/20/25/30 fps |
| Video Compression |
H.264 |
| Live View |
Yes |
| Audio Input & Output |
Built-in Microphone and Speaker |
| Audio Communication |
Two-Way Audio with Noise Cancellation |
| Siren Volume |
99 dB (Level measured at 4-inch/10-cm distance) |
|
STORAGE
|
| Local Storage |
MicroSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage |
Tapo Care Cloud Storage Services (Subscription required) |
|
DETECTION and NOTIFICATIONS
|
| AI Detection |
Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Tamper Detection
Line-Crossing Detection
Meow Detection
Bark Detection
Glass-Breaking Detection |
| Activity Zones |
Yes |
| Output Notification |
System Notification
System Notification with Snapshot (Tapo Care Services) |
|
NETWORK
|
| Network Connectivity |
4G LTE/LAN Cable |
| RTSP |
Yes |
| ONVIF |
YES (Only Available in Ethernet Mode) |
|
4G
|
| Frequency |
LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41 |
|
POWER
|
| Power Source |
12V DC Power Adapter
PoE: 802.3 af/at |
| Input Voltage |
100-240 V, 50/60 Hz |
| Output Voltage |
DC Power:12V, 1A |
|
GENERAL
|
| Smart Integration |
Google Assistant, Amazon Alexa |
| Weather Resistance |
IP66 |
| System Requirements |
Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher |
| Mounting Options |
Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included) |
| Operating Temperature |
-30℃~60℃ |
| Storage Temperature |
-40℃~60℃ |
| Operating Humidity |
10%~90% RH, Non-condensing |
| Storage Humidity |
0~90% RH, Non-condensing |
| Dimensions ( W x D x H ) |
Camera Dimensions: 5.15× 3.31×4.57 in (130. 8× 84.0 × 116.1 mm)
Camera Dimensions with included antennas and bracket
5.5 × 4.03 × 9.22 in (139.8 × 102.3 × 234.2 mm) |
| Package Content |
TC40GW Camera
Detachable Antenna
DC Power Adapter
Mounting Template Sticker
Mounting Bracket
Mounting Anchors
Bracket Screws
Mounting Screws
Waterproof Seal
Waterproof Cable Attachments
Quick Start Guide |
| Certifications |
CE,NTRA,RCM,VCCI,NCC,BSMI,ROHS |
Additional Information
Enhance your security with the TP-LINK Tapo TC40GW Outdoor Camera. Featuring 4G LTE connectivity for hassle-free installation, 360° viewing, and vibrant color night vision, this weatherproof camera ensures safety day and night. With smart AI detection and two-way audio, you can easily monitor your property from anywhere. Enjoy peace of mind with local and cloud storage options for your important moments.
