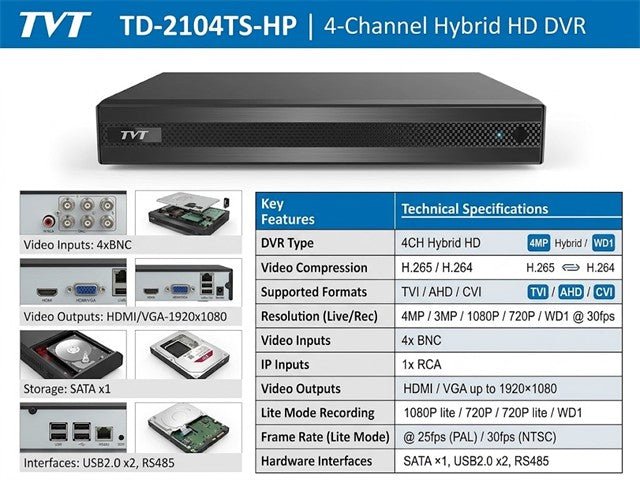

DVR 4CH Hybrid HD, H.265/H.264, 4MP/3MP/1080P/720P/WD1@30fps/TVI/AHD/CVI, Video I/P-4xBNC, Video O/P HDMI/VGA-1920×1080, IP I/P 1xRCA, 1080P lite/720P/720P lite/WD1@25fps(PAL)/30fps(NTSC),HDM,VGA,SATA×1,USB2.0x2,RS485


 TD-2100TS-HP series are 4 / 8 CH 8MP/5MP/4MP/3MP/1080P/720P/WD1 high definition DVRs with ability to connect analog and IP cameras simultaneously, which adopt the standard H.265 high profile compression format and the most advanced SOC technique to ensure real time recording in each channel and realize outstanding robustness of the system. TD-2100TS-HP support 4 / 8 CH video input, 1 CH audio input, simultaneous 4 / 8 CH playback. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.



  •  / 8 CH TVI / AHD/CVI 8MP/5MP/4MP/3MP/1080P/720P/WD1 video input
  • 4 / 8 CH DVR support 2 / 8 CH 8MP / 5MP / 4MP / 3MP / 1080P /720P/WD1 IP input by default
  • Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
  • Multi-mode recording: manual / timer / motion / smart event
  • Playback : 4 / 8 CH simultaneously playback
  • Search: time slice, time, event, tag and smart search
  • Express and flexible backup via USB, network and so on
  • Pentaplex: preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol
  • Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
  • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
  • Multi-user online simultaneously
  • Authorization management, log review and device status review
  • HDMI 4K output, true high resolution display
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phones
  • Powerful mobile surveillance by smart phones with iOS and Andriod OS
