DVR 16CH Hybrid HD, H.264/2.65, TVI / CVI / AHD 1080P lite, 720P/Lite, WD1, Video I/P 16xBNC , UPTO 5MP, Video O/P HDMI/VGA/BNC-1920×1080, IP I/P 1xRCA, 1080P lite, 720P, 720P lite, WD1@25fps(PAL)/30fps(NTSC), HDD SATAX1 Upto 8TB, RJ45 100Mbps, USB2.0x2

16CH Hybrid HD DVR


  • 16 CH TVI / AHD/CVI 1080P/1080PLite/720P/720P Lite/WD1 video input
  • 16 CH DVR supports 2CH  5MP / 4MP / 3MP / 1080P / 960P / 720P / IP video input
  • 16CH analog video input can be switched to 16CH  IP video input
  • H.265/H.264 coding
  • Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
  • Multi-mode recording: manual / timed / motion / AI recording
  • Playback :  16 CH simultaneously playback
  • Search: time slice, time, event, tag search
  • Express and flexible backup via USB, network and so on
  • Pentaplex: preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol
  • Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
  • Support remote network transmission and remote surveillance with mobile device
  • Authorization management, log review and device status review
  • Support 1080P output, true high resolution display
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phones
  • Powerful mobile surveillance by smart phones with iOS and Andriod OS

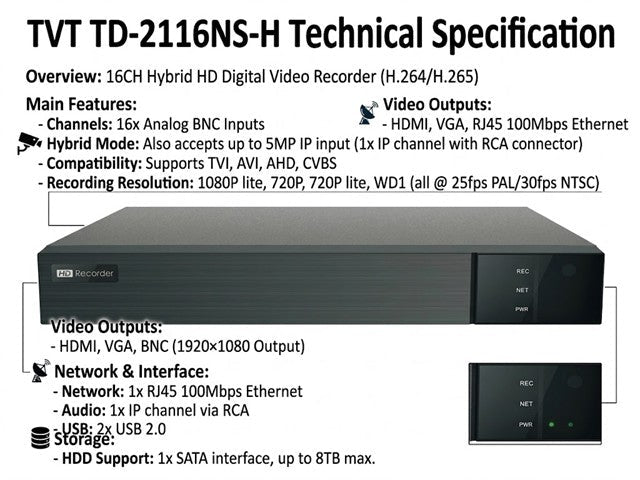

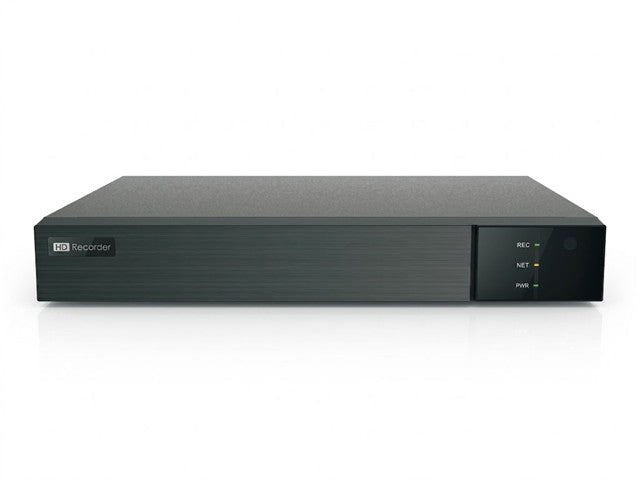

Model TD-2116NS-HL
System OS Embedded Linux
Video Analog Video Input BNC ×16
BNC interface (1.0Vp-p; 75Ω)
TVI/ AHD/CVI: 1080P/ 1080P Lite/ 720P/ 720P Lite/ WD1
IP Video Input 2CH (up to 18CH)
Up to 5MP@25fps
Total Input 18CH
Output HDMI × 1 :1920 × 1080 / 1280 × 1024 / 1024 × 768
VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
BNC × 1: CVBS( used as the main or spot output)
Compression H.264/H.265/H.265+
Multi-screen Display 1/4/6/8/9/13/16/25
Audio Input RCA ×1
Output RCA × 1 (linear, 600Ω)
Two-way audio Take up channel one audio input
Compression G.711(U/A)
Record Resolution 1080P Lite/ 720P/ 720P Lite/ WD1
Frame Rate Analog Channel:
1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) ( only CH 1 supports) 1080P Lite/720P/WD1: 12fps (PAL)/15fps (NTSC) ( other channels support) 720P Lite: 25fps(PAL) / 30fps (NTSC)
IP Channel: 25fps(PAL) / 30fps (NTSC)
Bit Rate 32Kbps ~ 4Mbps
Playback Playback 16CH
Search Time slice / time / event / tag search
Smart Search Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Function Play, pause, FF, FB, digital zoom, etc.
Alarm Mode Manual, motion, exception, smart event
Input No
Output No
Network Interface RJ 45 100Mbps × 1
Incoming Bandwidth 16Mbps
Outgoing Bandwidth 80Mbps
Client Connection Max.10 users access
MobileDevice OS iOS, Andriod
Storage HDD SATA× 1, up to 8TB
Backup Local Backup U disk, USB mobile HDD
Network Backup Yes
Port RS 485 No
USB USB 2.0 × 2
Remote Controller Optional
Others Power Supply DC12V /2A
Consumption ≤ 10W ( without HDD )
Dimensions(mm) 255 × 234 × 42 ( W × D × H )
Working Environment -10~50°C, 10%~90% (humidity)
Certificate CE, FCC
Environment Protection Directive EU RoHS, WEEE, REACH


Additional Information

Device DVR
Type 16CH | Hybrid | HD
